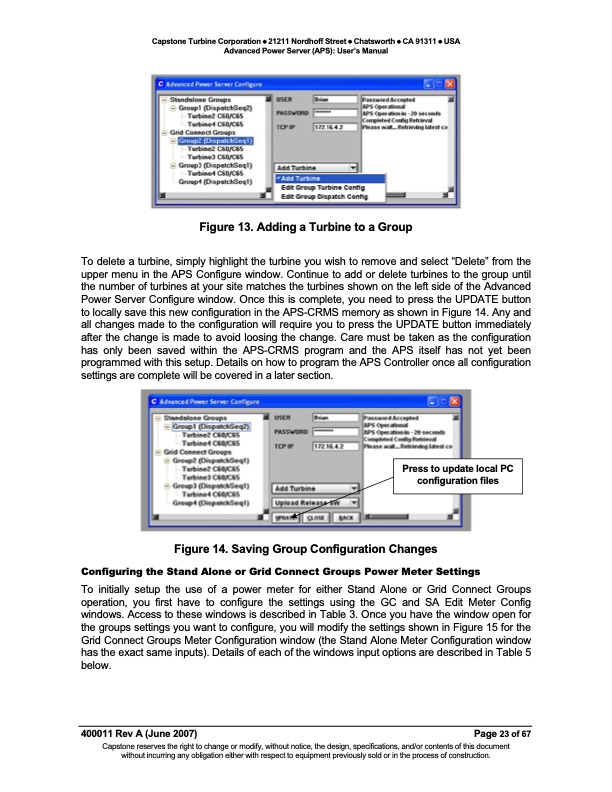

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Advanced Power Server (APS): User’s Manual Figure 13. Adding a Turbine to a Group To delete a turbine, simply highlight the turbine you wish to remove and select “Delete” from the upper menu in the APS Configure window. Continue to add or delete turbines to the group until the number of turbines at your site matches the turbines shown on the left side of the Advanced Power Server Configure window. Once this is complete, you need to press the UPDATE button to locally save this new configuration in the APS-CRMS memory as shown in Figure 14. Any and all changes made to the configuration will require you to press the UPDATE button immediately after the change is made to avoid loosing the change. Care must be taken as the configuration has only been saved within the APS-CRMS program and the APS itself has not yet been programmed with this setup. Details on how to program the APS Controller once all configuration settings are complete will be covered in a later section. Press to update local PC configuration files Figure 14. Saving Group Configuration Changes Configuring the Stand Alone or Grid Connect Groups Power Meter Settings To initially setup the use of a power meter for either Stand Alone or Grid Connect Groups operation, you first have to configure the settings using the GC and SA Edit Meter Config windows. Access to these windows is described in Table 3. Once you have the window open for the groups settings you want to configure, you will modify the settings shown in Figure 15 for the Grid Connect Groups Meter Configuration window (the Stand Alone Meter Configuration window has the exact same inputs). Details of each of the windows input options are described in Table 5 below. 400011 Rev A (June 2007) Page 23 of 67 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | ADVANCED POWER SERVER (APS) USER’S MANUAL
