PDF Publication Title:
Text from PDF Page: 021

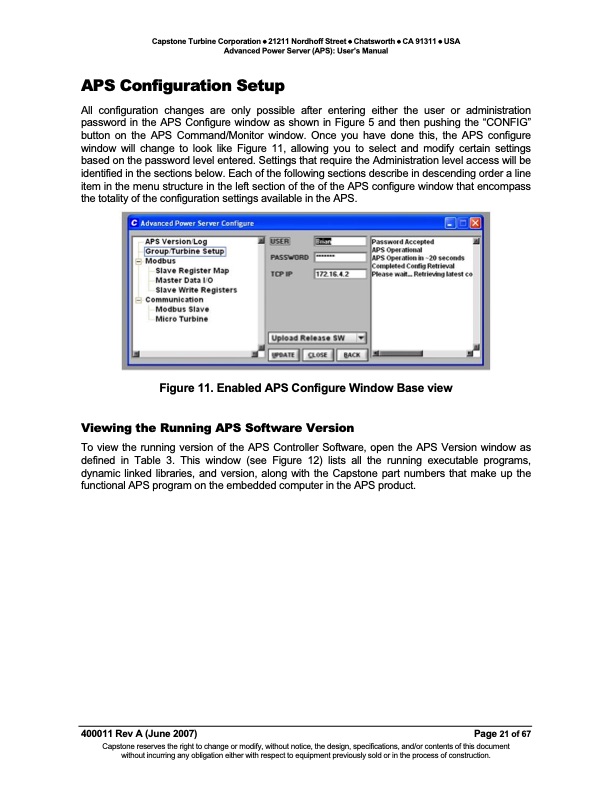

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Advanced Power Server (APS): User’s Manual APS Configuration Setup All configuration changes are only possible after entering either the user or administration password in the APS Configure window as shown in Figure 5 and then pushing the “CONFIG” button on the APS Command/Monitor window. Once you have done this, the APS configure window will change to look like Figure 11, allowing you to select and modify certain settings based on the password level entered. Settings that require the Administration level access will be identified in the sections below. Each of the following sections describe in descending order a line item in the menu structure in the left section of the of the APS configure window that encompass the totality of the configuration settings available in the APS. Figure 11. Enabled APS Configure Window Base view Viewing the Running APS Software Version To view the running version of the APS Controller Software, open the APS Version window as defined in Table 3. This window (see Figure 12) lists all the running executable programs, dynamic linked libraries, and version, along with the Capstone part numbers that make up the functional APS program on the embedded computer in the APS product. 400011 Rev A (June 2007) Page 21 of 67 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | ADVANCED POWER SERVER (APS) USER’S MANUAL
PDF Search Title:
ADVANCED POWER SERVER (APS) USER’S MANUALOriginal File Name Searched:
400011_APS_Users_Manual.pdfDIY PDF Search: Google It | Yahoo | Bing
