PDF Publication Title:
Text from PDF Page: 017

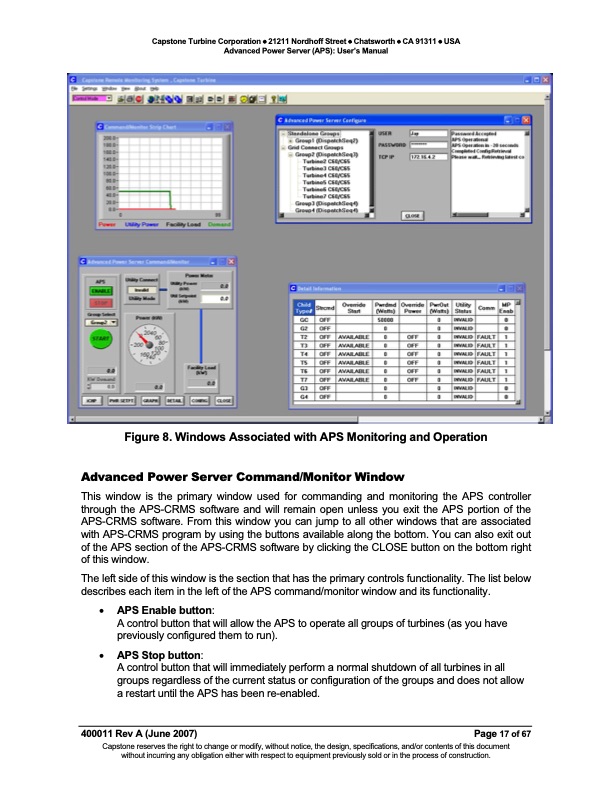

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Advanced Power Server (APS): User’s Manual Figure 8. Windows Associated with APS Monitoring and Operation Advanced Power Server Command/Monitor Window This window is the primary window used for commanding and monitoring the APS controller through the APS-CRMS software and will remain open unless you exit the APS portion of the APS-CRMS software. From this window you can jump to all other windows that are associated with APS-CRMS program by using the buttons available along the bottom. You can also exit out of the APS section of the APS-CRMS software by clicking the CLOSE button on the bottom right of this window. The left side of this window is the section that has the primary controls functionality. The list below describes each item in the left of the APS command/monitor window and its functionality. • APS Enable button: A control button that will allow the APS to operate all groups of turbines (as you have previously configured them to run). • APS Stop button: A control button that will immediately perform a normal shutdown of all turbines in all groups regardless of the current status or configuration of the groups and does not allow a restart until the APS has been re-enabled. 400011 Rev A (June 2007) Page 17 of 67 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | ADVANCED POWER SERVER (APS) USER’S MANUAL
PDF Search Title:
ADVANCED POWER SERVER (APS) USER’S MANUALOriginal File Name Searched:
400011_APS_Users_Manual.pdfDIY PDF Search: Google It | Yahoo | Bing
