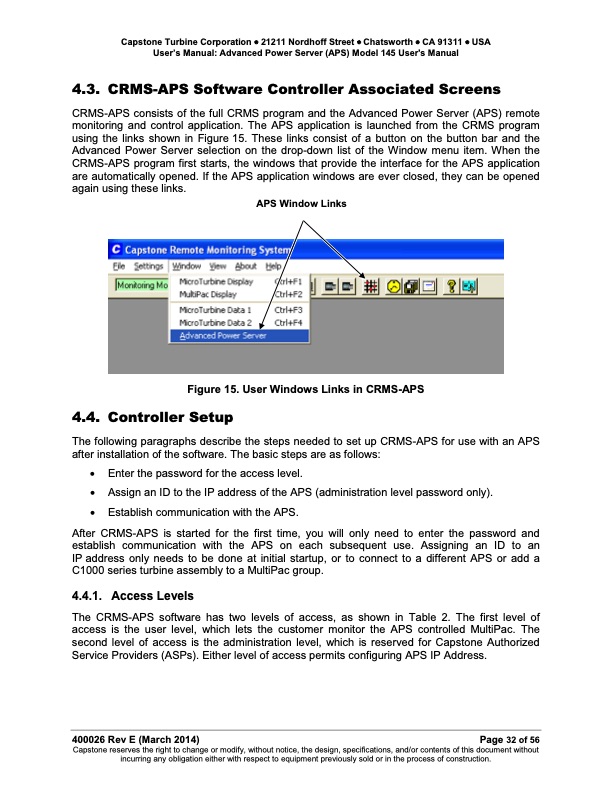

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA User’s Manual: Advanced Power Server (APS) Model 145 User's Manual 4.3. CRMS-APS Software Controller Associated Screens CRMS-APS consists of the full CRMS program and the Advanced Power Server (APS) remote monitoring and control application. The APS application is launched from the CRMS program using the links shown in Figure 15. These links consist of a button on the button bar and the Advanced Power Server selection on the drop-down list of the Window menu item. When the CRMS-APS program first starts, the windows that provide the interface for the APS application are automatically opened. If the APS application windows are ever closed, they can be opened again using these links. APS Window Links Figure 15. User Windows Links in CRMS-APS 4.4. Controller Setup The following paragraphs describe the steps needed to set up CRMS-APS for use with an APS after installation of the software. The basic steps are as follows: • Enter the password for the access level. • Assign an ID to the IP address of the APS (administration level password only). • Establish communication with the APS. After CRMS-APS is started for the first time, you will only need to enter the password and establish communication with the APS on each subsequent use. Assigning an ID to an IP address only needs to be done at initial startup, or to connect to a different APS or add a C1000 series turbine assembly to a MultiPac group. 4.4.1. Access Levels The CRMS-APS software has two levels of access, as shown in Table 2. The first level of access is the user level, which lets the customer monitor the APS controlled MultiPac. The second level of access is the administration level, which is reserved for Capstone Authorized Service Providers (ASPs). Either level of access permits configuring APS IP Address. 400026 Rev E (March 2014) Page 32 of 56 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Advanced Power Server (APS) Model 145 User's Manual
