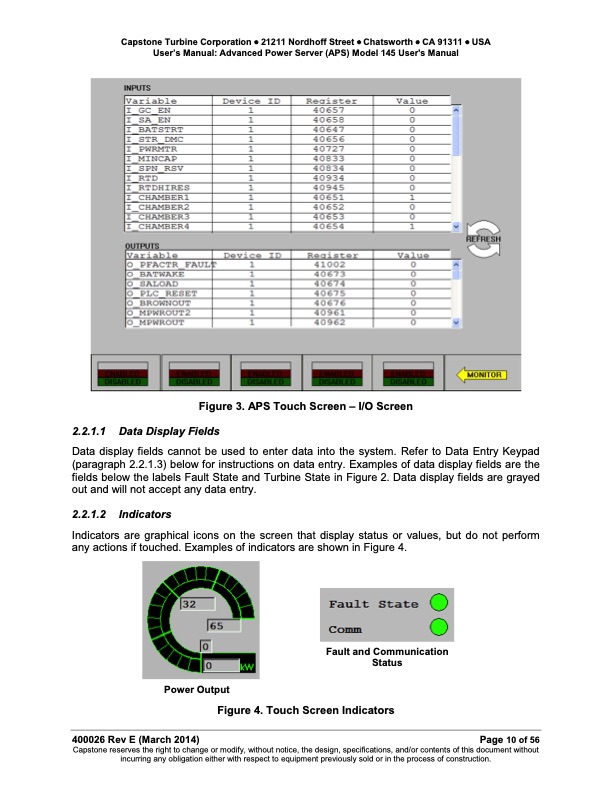

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA User’s Manual: Advanced Power Server (APS) Model 145 User's Manual Figure 3. APS Touch Screen – I/O Screen 2.2.1.1 Data Display Fields Data display fields cannot be used to enter data into the system. Refer to Data Entry Keypad (paragraph 2.2.1.3) below for instructions on data entry. Examples of data display fields are the fields below the labels Fault State and Turbine State in Figure 2. Data display fields are grayed out and will not accept any data entry. 2.2.1.2 Indicators Indicators are graphical icons on the screen that display status or values, but do not perform any actions if touched. Examples of indicators are shown in Figure 4. Fault and Communication Status Power Output Figure 4. Touch Screen Indicators 400026 Rev E (March 2014) Page 10 of 56 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Advanced Power Server (APS) Model 145 User's Manual
