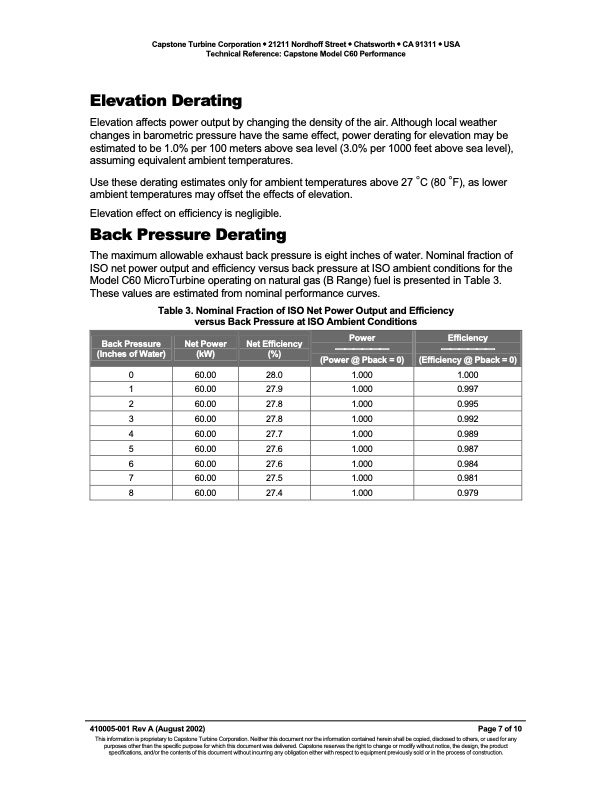

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone Model C60 Performance Elevation Derating Elevation affects power output by changing the density of the air. Although local weather changes in barometric pressure have the same effect, power derating for elevation may be estimated to be 1.0% per 100 meters above sea level (3.0% per 1000 feet above sea level), assuming equivalent ambient temperatures. Use these derating estimates only for ambient temperatures above 27 °C (80 °F), as lower ambient temperatures may offset the effects of elevation. Elevation effect on efficiency is negligible. Back Pressure Derating The maximum allowable exhaust back pressure is eight inches of water. Nominal fraction of ISO net power output and efficiency versus back pressure at ISO ambient conditions for the Model C60 MicroTurbine operating on natural gas (B Range) fuel is presented in Table 3. These values are estimated from nominal performance curves. Table 3. Nominal Fraction of ISO Net Power Output and Efficiency versus Back Pressure at ISO Ambient Conditions Back Pressure (Inches of Water) Net Power (kW) Net Efficiency (%) Power (Power @ Pback = 0) Efficiency (Efficiency @ Pback = 0) 0 60.00 28.0 1 60.00 27.9 2 60.00 27.8 3 60.00 27.8 4 60.00 27.7 5 60.00 27.6 6 60.00 27.6 7 60.00 27.5 8 60.00 27.4 1.000 1.000 1.000 0.997 1.000 0.995 1.000 0.992 1.000 0.989 1.000 0.987 1.000 0.984 1.000 0.981 1.000 0.979 410005-001 Rev A (August 2002) Page 7 of 10 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | 410005-Model-C60-Performance
