Text from PDF Page: 005

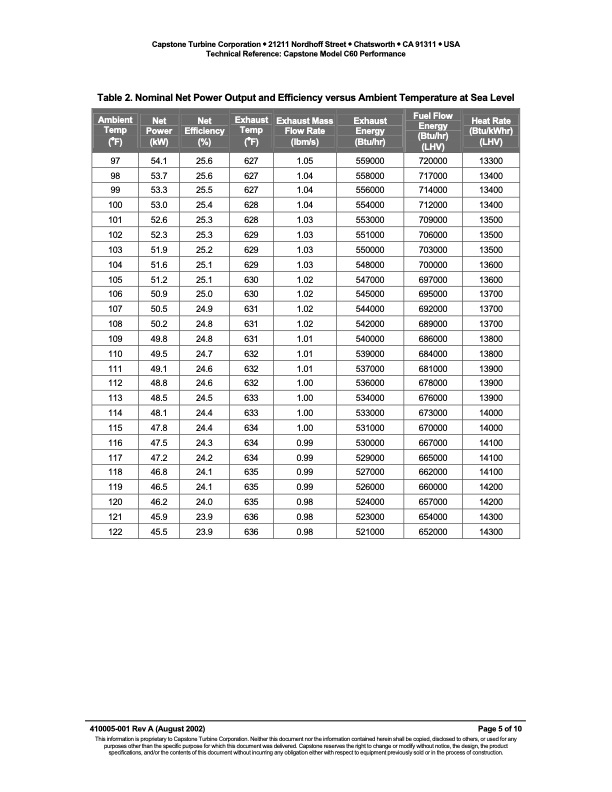

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone Model C60 Performance Table 2. Nominal Net Power Output and Efficiency versus Ambient Temperature at Sea Level Ambient Temp (°F) Net Power (kW) Net Efficiency (%) Exhaust Temp (°F) Exhaust Mass Flow Rate (lbm/s) Exhaust Energy (Btu/hr) Fuel Flow Energy (Btu/hr) (LHV) Heat Rate (Btu/kWhr) (LHV) 97 54.1 25.6 627 1.05 98 53.7 25.6 627 1.04 99 53.3 25.5 627 1.04 100 53.0 25.4 628 1.04 101 52.6 25.3 628 1.03 102 52.3 25.3 629 1.03 103 51.9 25.2 629 1.03 104 51.6 25.1 629 1.03 105 51.2 25.1 630 1.02 106 50.9 25.0 630 1.02 107 50.5 24.9 631 1.02 108 50.2 24.8 631 1.02 109 49.8 24.8 631 1.01 110 49.5 24.7 632 1.01 111 49.1 24.6 632 1.01 112 48.8 24.6 632 1.00 113 48.5 24.5 633 1.00 114 48.1 24.4 633 1.00 115 47.8 24.4 634 1.00 116 47.5 24.3 634 0.99 117 47.2 24.2 634 0.99 118 46.8 24.1 635 0.99 119 46.5 24.1 635 0.99 120 46.2 24.0 635 0.98 121 45.9 23.9 636 0.98 122 45.5 23.9 636 0.98 559000 720000 558000 717000 556000 714000 554000 712000 553000 709000 551000 706000 550000 703000 548000 700000 547000 697000 545000 695000 544000 692000 542000 689000 540000 686000 539000 684000 537000 681000 536000 678000 534000 676000 533000 673000 531000 670000 530000 667000 529000 665000 527000 662000 526000 660000 524000 657000 523000 654000 521000 652000 13300 13400 13400 13400 13500 13500 13500 13600 13600 13700 13700 13700 13800 13800 13900 13900 13900 14000 14000 14100 14100 14100 14200 14200 14300 14300 410005-001 Rev A (August 2002) Page 5 of 10 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | 410005-Model-C60-Performance
