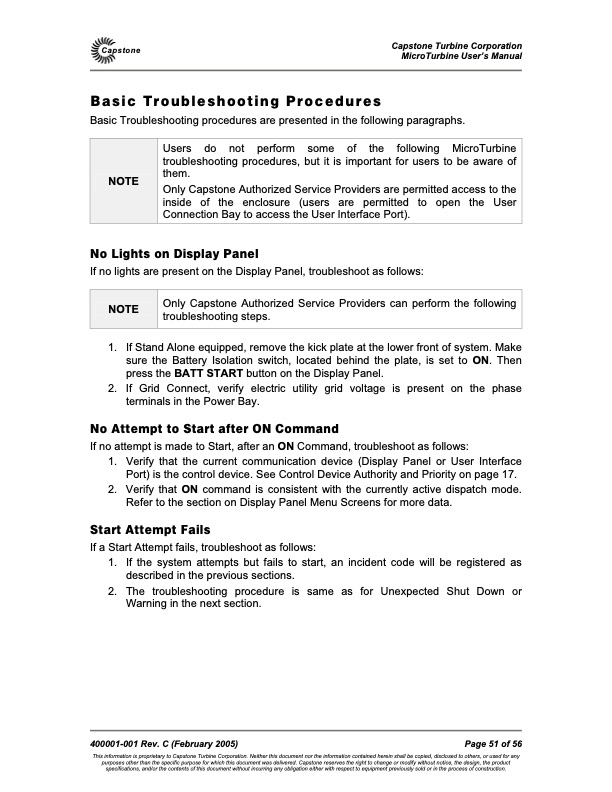

Capstone Basic Troubleshooting Procedures Capstone Turbine Corporation MicroTurbine User’s Manual Basic Troubleshooting procedures are presented in the following paragraphs. NOTE Users do not perform some of the following MicroTurbine troubleshooting procedures, but it is important for users to be aware of them. Only Capstone Authorized Service Providers are permitted access to the inside of the enclosure (users are permitted to open the User Connection Bay to access the User Interface Port). No Lights on Display Panel If no lights are present on the Display Panel, troubleshoot as follows: Only Capstone Authorized Service Providers can perform the following troubleshooting steps. 1. If Stand Alone equipped, remove the kick plate at the lower front of system. Make sure the Battery Isolation switch, located behind the plate, is set to ON. Then press the BATT START button on the Display Panel. 2. If Grid Connect, verify electric utility grid voltage is present on the phase terminals in the Power Bay. No Attempt to Start after ON Command If no attempt is made to Start, after an ON Command, troubleshoot as follows: 1. Verify that the current communication device (Display Panel or User Interface Port) is the control device. See Control Device Authority and Priority on page 17. 2. Verify that ON command is consistent with the currently active dispatch mode. Refer to the section on Display Panel Menu Screens for more data. Start Attempt Fails If a Start Attempt fails, troubleshoot as follows: 1. If the system attempts but fails to start, an incident code will be registered as described in the previous sections. 2. The troubleshooting procedure is same as for Unexpected Shut Down or Warning in the next section. NOTE 400001-001 Rev. C (February 2005) Page 51 of 56 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | 2002 Capstone User Guide
