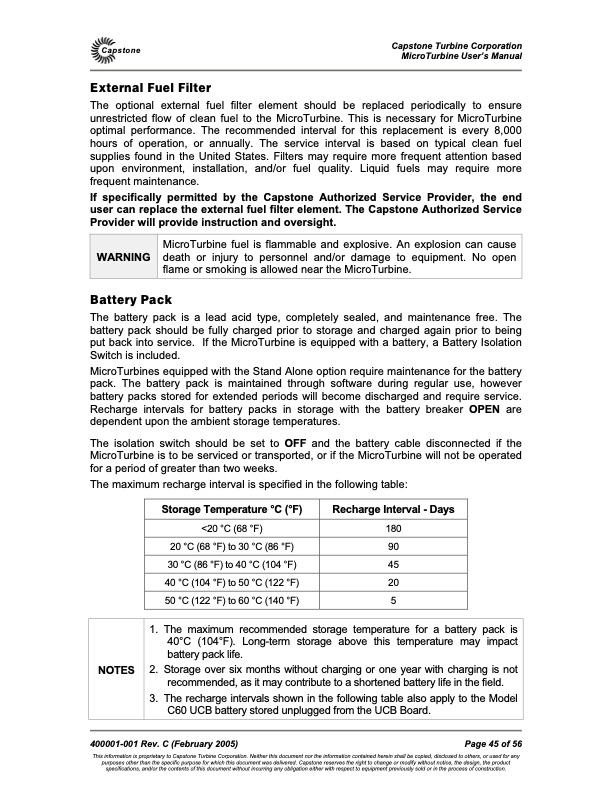

Capstone External Fuel Filter Capstone Turbine Corporation MicroTurbine User’s Manual The optional external fuel filter element should be replaced periodically to ensure unrestricted flow of clean fuel to the MicroTurbine. This is necessary for MicroTurbine optimal performance. The recommended interval for this replacement is every 8,000 hours of operation, or annually. The service interval is based on typical clean fuel supplies found in the United States. Filters may require more frequent attention based upon environment, installation, and/or fuel quality. Liquid fuels may require more frequent maintenance. If specifically permitted by the Capstone Authorized Service Provider, the end user can replace the external fuel filter element. The Capstone Authorized Service Provider will provide instruction and oversight. Battery Pack The battery pack is a lead acid type, completely sealed, and maintenance free. The battery pack should be fully charged prior to storage and charged again prior to being put back into service. If the MicroTurbine is equipped with a battery, a Battery Isolation Switch is included. MicroTurbines equipped with the Stand Alone option require maintenance for the battery pack. The battery pack is maintained through software during regular use, however battery packs stored for extended periods will become discharged and require service. Recharge intervals for battery packs in storage with the battery breaker OPEN are dependent upon the ambient storage temperatures. The isolation switch should be set to OFF and the battery cable disconnected if the MicroTurbine is to be serviced or transported, or if the MicroTurbine will not be operated for a period of greater than two weeks. WARNING MicroTurbine fuel is flammable and explosive. An explosion can cause death or injury to personnel and/or damage to equipment. No open flame or smoking is allowed near the MicroTurbine. The maximum recharge interval is specified in the following table: Storage Temperature °C (°F) Recharge Interval - Days <20 °C (68 °F) 180 20°C(68°F)to30°C(86°F) 90 30°C(86°F)to40°C(104°F) 45 40°C(104°F)to50°C(122°F) 20 50°C(122°F)to60°C(140°F) 5 NOTES 1. The maximum recommended storage temperature for a battery pack is 40°C (104°F). Long-term storage above this temperature may impact battery pack life. 2. Storage over six months without charging or one year with charging is not recommended, as it may contribute to a shortened battery life in the field. 3. The recharge intervals shown in the following table also apply to the Model C60 UCB battery stored unplugged from the UCB Board. 400001-001 Rev. C (February 2005) Page 45 of 56 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | 2002 Capstone User Guide
