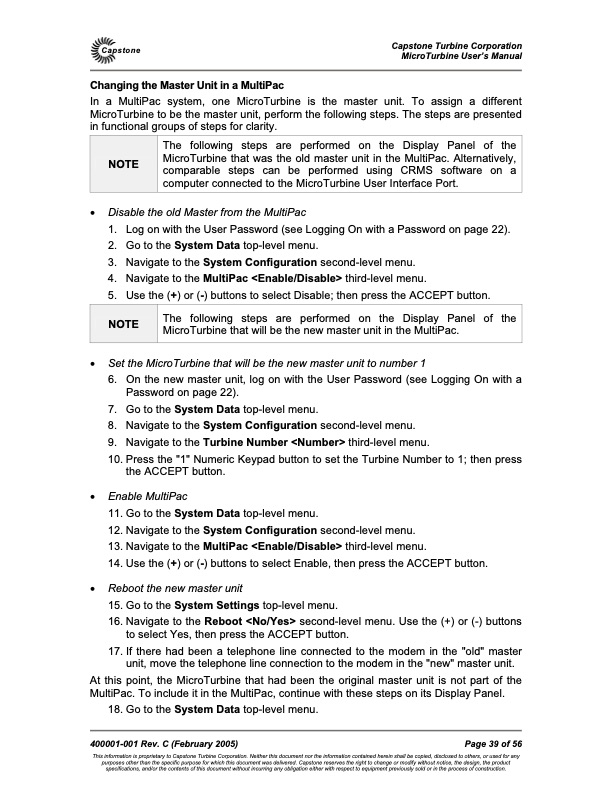

Text from PDF Page: 039

Capstone Changing the Master Unit in a MultiPac Capstone Turbine Corporation MicroTurbine User’s Manual In a MultiPac system, one MicroTurbine is the master unit. To assign a different MicroTurbine to be the master unit, perform the following steps. The steps are presented in functional groups of steps for clarity. • Disable the old Master from the MultiPac 1. Log on with the User Password (see Logging On with a Password on page 22). 2. Go to the System Data top-level menu. 3. Navigate to the System Configuration second-level menu. 4. Navigate to the MultiPac third-level menu. 5. Use the (+) or (-) buttons to select Disable; then press the ACCEPT button. The following steps are performed on the Display Panel of the MicroTurbine that will be the new master unit in the MultiPac. • Set the MicroTurbine that will be the new master unit to number 1 6. On the new master unit, log on with the User Password (see Logging On with a Password on page 22). 7. Go to the System Data top-level menu. 8. Navigate to the System Configuration second-level menu. 9. Navigate to the Turbine Number third-level menu. 10. Press the "1" Numeric Keypad button to set the Turbine Number to 1; then press the ACCEPT button. • Enable MultiPac 11. Go to the System Data top-level menu. 12. Navigate to the System Configuration second-level menu. 13. Navigate to the MultiPac third-level menu. 14. Use the (+) or (-) buttons to select Enable, then press the ACCEPT button. • Reboot the new master unit 15. Go to the System Settings top-level menu. 16. Navigate to the Reboot second-level menu. Use the (+) or (-) buttons to select Yes, then press the ACCEPT button. 17. If there had been a telephone line connected to the modem in the "old" master unit, move the telephone line connection to the modem in the "new" master unit. At this point, the MicroTurbine that had been the original master unit is not part of the MultiPac. To include it in the MultiPac, continue with these steps on its Display Panel. 18. Go to the System Data top-level menu. 400001-001 Rev. C (February 2005) Page 39 of 56 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. NOTE The following steps are performed on the Display Panel of the MicroTurbine that was the old master unit in the MultiPac. Alternatively, comparable steps can be performed using CRMS software on a computer connected to the MicroTurbine User Interface Port. NOTE
