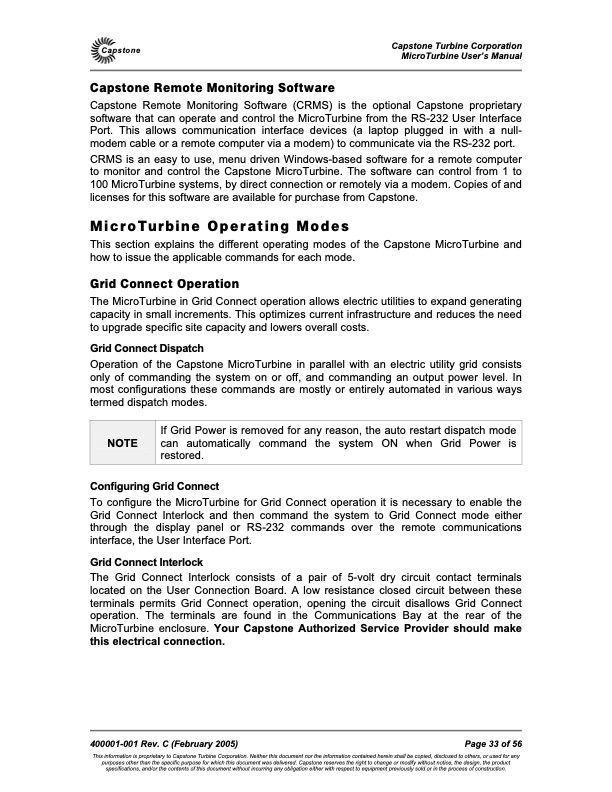

Capstone Capstone Remote Monitoring Software Capstone Turbine Corporation MicroTurbine User’s Manual Capstone Remote Monitoring Software (CRMS) is the optional Capstone proprietary software that can operate and control the MicroTurbine from the RS-232 User Interface Port. This allows communication interface devices (a laptop plugged in with a null- modem cable or a remote computer via a modem) to communicate via the RS-232 port. CRMS is an easy to use, menu driven Windows-based software for a remote computer to monitor and control the Capstone MicroTurbine. The software can control from 1 to 100 MicroTurbine systems, by direct connection or remotely via a modem. Copies of and licenses for this software are available for purchase from Capstone. MicroTurbine Operating Modes This section explains the different operating modes of the Capstone MicroTurbine and how to issue the applicable commands for each mode. Grid Connect Operation The MicroTurbine in Grid Connect operation allows electric utilities to expand generating capacity in small increments. This optimizes current infrastructure and reduces the need to upgrade specific site capacity and lowers overall costs. Grid Connect Dispatch Operation of the Capstone MicroTurbine in parallel with an electric utility grid consists only of commanding the system on or off, and commanding an output power level. In most configurations these commands are mostly or entirely automated in various ways termed dispatch modes. Configuring Grid Connect To configure the MicroTurbine for Grid Connect operation it is necessary to enable the Grid Connect Interlock and then command the system to Grid Connect mode either through the display panel or RS-232 commands over the remote communications interface, the User Interface Port. Grid Connect Interlock The Grid Connect Interlock consists of a pair of 5-volt dry circuit contact terminals located on the User Connection Board. A low resistance closed circuit between these terminals permits Grid Connect operation, opening the circuit disallows Grid Connect operation. The terminals are found in the Communications Bay at the rear of the MicroTurbine enclosure. Your Capstone Authorized Service Provider should make this electrical connection. 400001-001 Rev. C (February 2005) Page 33 of 56 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. NOTE If Grid Power is removed for any reason, the auto restart dispatch mode can automatically command the system ON when Grid Power is restored.PDF Image | 2002 Capstone User Guide
