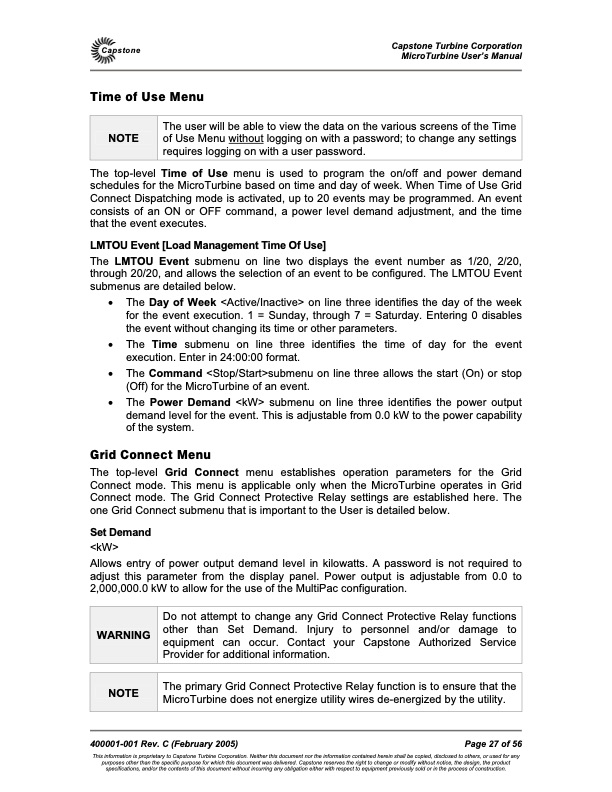

Capstone Time of Use Menu Capstone Turbine Corporation MicroTurbine User’s Manual NOTE The user will be able to view the data on the various screens of the Time of Use Menu without logging on with a password; to change any settings requires logging on with a user password. The top-level Time of Use menu is used to program the on/off and power demand schedules for the MicroTurbine based on time and day of week. When Time of Use Grid Connect Dispatching mode is activated, up to 20 events may be programmed. An event consists of an ON or OFF command, a power level demand adjustment, and the time that the event executes. LMTOU Event [Load Management Time Of Use] The LMTOU Event submenu on line two displays the event number as 1/20, 2/20, through 20/20, and allows the selection of an event to be configured. The LMTOU Event submenus are detailed below. • The Day of Week on line three identifies the day of the week for the event execution. 1 = Sunday, through 7 = Saturday. Entering 0 disables the event without changing its time or other parameters. • The Time submenu on line three identifies the time of day for the event execution. Enter in 24:00:00 format. • The Command submenu on line three allows the start (On) or stop (Off) for the MicroTurbine of an event. • The Power Demand submenu on line three identifies the power output demand level for the event. This is adjustable from 0.0 kW to the power capability of the system. Grid Connect Menu The top-level Grid Connect menu establishes operation parameters for the Grid Connect mode. This menu is applicable only when the MicroTurbine operates in Grid Connect mode. The Grid Connect Protective Relay settings are established here. The one Grid Connect submenu that is important to the User is detailed below. Set Demand Allows entry of power output demand level in kilowatts. A password is not required to adjust this parameter from the display panel. Power output is adjustable from 0.0 to 2,000,000.0 kW to allow for the use of the MultiPac configuration. The primary Grid Connect Protective Relay function is to ensure that the MicroTurbine does not energize utility wires de-energized by the utility. 400001-001 Rev. C (February 2005) Page 27 of 56 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. WARNING Do not attempt to change any Grid Connect Protective Relay functions other than Set Demand. Injury to personnel and/or damage to equipment can occur. Contact your Capstone Authorized Service Provider for additional information. NOTE
