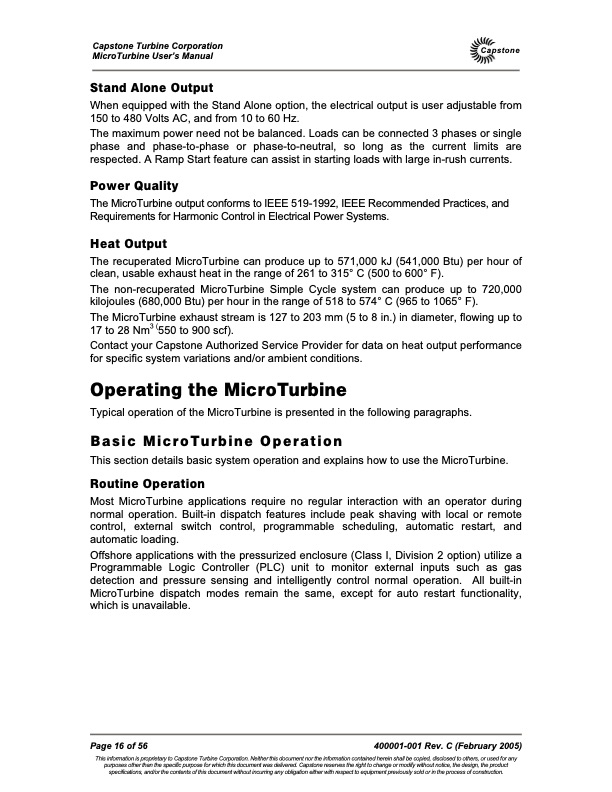

Capstone Turbine Corporation MicroTurbine User’s Manual Stand Alone Output Capstone When equipped with the Stand Alone option, the electrical output is user adjustable from 150 to 480 Volts AC, and from 10 to 60 Hz. The maximum power need not be balanced. Loads can be connected 3 phases or single phase and phase-to-phase or phase-to-neutral, so long as the current limits are respected. A Ramp Start feature can assist in starting loads with large in-rush currents. Power Quality The MicroTurbine output conforms to IEEE 519-1992, IEEE Recommended Practices, and Requirements for Harmonic Control in Electrical Power Systems. Heat Output The recuperated MicroTurbine can produce up to 571,000 kJ (541,000 Btu) per hour of clean, usable exhaust heat in the range of 261 to 315° C (500 to 600° F). The non-recuperated MicroTurbine Simple Cycle system can produce up to 720,000 kilojoules (680,000 Btu) per hour in the range of 518 to 574° C (965 to 1065° F). The MicroTurbine exhaust stream is 127 to 203 mm (5 to 8 in.) in diameter, flowing up to 17 to 28 Nm3 (550 to 900 scf). Contact your Capstone Authorized Service Provider for data on heat output performance for specific system variations and/or ambient conditions. Operating the MicroTurbine Typical operation of the MicroTurbine is presented in the following paragraphs. Basic MicroTurbine Operation This section details basic system operation and explains how to use the MicroTurbine. Routine Operation Most MicroTurbine applications require no regular interaction with an operator during normal operation. Built-in dispatch features include peak shaving with local or remote control, external switch control, programmable scheduling, automatic restart, and automatic loading. Offshore applications with the pressurized enclosure (Class I, Division 2 option) utilize a Programmable Logic Controller (PLC) unit to monitor external inputs such as gas detection and pressure sensing and intelligently control normal operation. All built-in MicroTurbine dispatch modes remain the same, except for auto restart functionality, which is unavailable. Page 16 of 56 400001-001 Rev. C (February 2005) This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | 2002 Capstone User Guide
