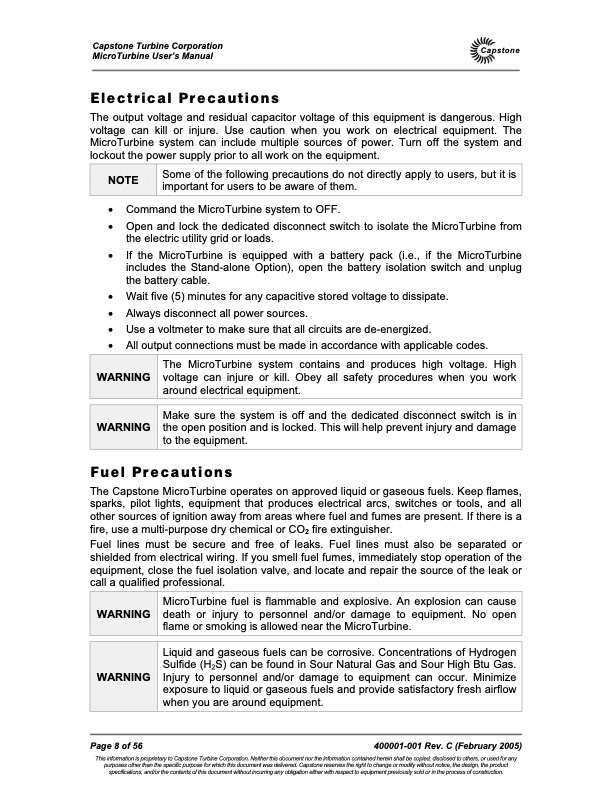

Capstone Turbine Corporation MicroTurbine User’s Manual Electrical Precautions Capstone The output voltage and residual capacitor voltage of this equipment is dangerous. High voltage can kill or injure. Use caution when you work on electrical equipment. The MicroTurbine system can include multiple sources of power. Turn off the system and lockout the power supply prior to all work on the equipment. NOTE Some of the following precautions do not directly apply to users, but it is important for users to be aware of them. • Command the MicroTurbine system to OFF. • Open and lock the dedicated disconnect switch to isolate the MicroTurbine from the electric utility grid or loads. • If the MicroTurbine is equipped with a battery pack (i.e., if the MicroTurbine includes the Stand-alone Option), open the battery isolation switch and unplug the battery cable. • Wait five (5) minutes for any capacitive stored voltage to dissipate. • Always disconnect all power sources. • Use a voltmeter to make sure that all circuits are de-energized. • All output connections must be made in accordance with applicable codes. Fuel Precautions The Capstone MicroTurbine operates on approved liquid or gaseous fuels. Keep flames, sparks, pilot lights, equipment that produces electrical arcs, switches or tools, and all other sources of ignition away from areas where fuel and fumes are present. If there is a fire, use a multi-purpose dry chemical or CO2 fire extinguisher. Fuel lines must be secure and free of leaks. Fuel lines must also be separated or shielded from electrical wiring. If you smell fuel fumes, immediately stop operation of the equipment, close the fuel isolation valve, and locate and repair the source of the leak or call a qualified professional. WARNING The MicroTurbine system contains and produces high voltage. High voltage can injure or kill. Obey all safety procedures when you work around electrical equipment. WARNING Make sure the system is off and the dedicated disconnect switch is in the open position and is locked. This will help prevent injury and damage to the equipment. WARNING MicroTurbine fuel is flammable and explosive. An explosion can cause death or injury to personnel and/or damage to equipment. No open flame or smoking is allowed near the MicroTurbine. WARNING Liquid and gaseous fuels can be corrosive. Concentrations of Hydrogen Sulfide (H2S) can be found in Sour Natural Gas and Sour High Btu Gas. Injury to personnel and/or damage to equipment can occur. Minimize exposure to liquid or gaseous fuels and provide satisfactory fresh airflow when you are around equipment. Page 8 of 56 400001-001 Rev. C (February 2005) This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | 2002 Capstone User Guide
