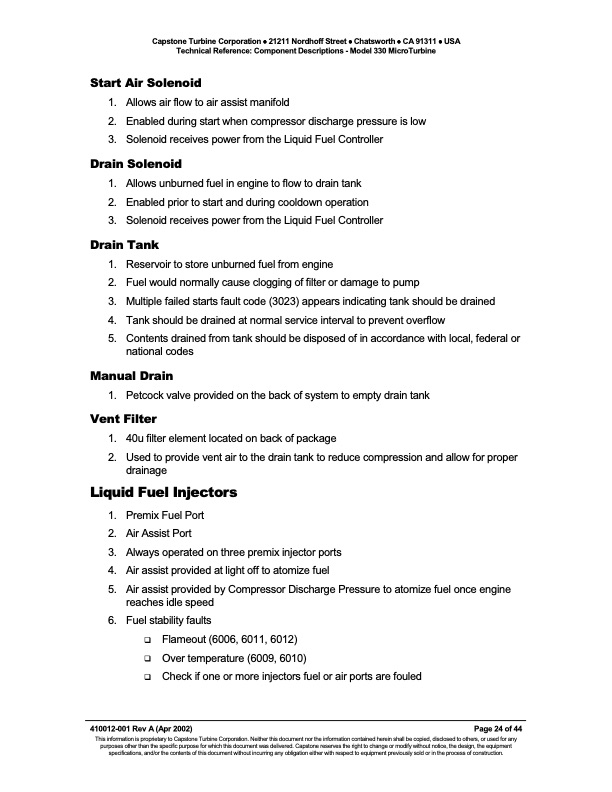

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model 330 MicroTurbine Start Air Solenoid 1. Allows air flow to air assist manifold 2. Enabled during start when compressor discharge pressure is low 3. Solenoid receives power from the Liquid Fuel Controller Drain Solenoid 1. Allows unburned fuel in engine to flow to drain tank 2. Enabled prior to start and during cooldown operation 3. Solenoid receives power from the Liquid Fuel Controller Drain Tank 1. Reservoir to store unburned fuel from engine 2. Fuel would normally cause clogging of filter or damage to pump 3. Multiple failed starts fault code (3023) appears indicating tank should be drained 4. Tank should be drained at normal service interval to prevent overflow 5. Contents drained from tank should be disposed of in accordance with local, federal or national codes Manual Drain 1. Petcock valve provided on the back of system to empty drain tank Vent Filter 1. 40u filter element located on back of package 2. Used to provide vent air to the drain tank to reduce compression and allow for proper drainage Liquid Fuel Injectors Premix Fuel Port 2. Air Assist Port 3. Always operated on three premix injector ports 4. Air assist provided at light off to atomize fuel 5. Air assist provided by Compressor Discharge Pressure to atomize fuel once engine reaches idle speed 6. Fuel stability faults Flameout (6006, 6011, 6012) Over temperature (6009, 6010) Check if one or more injectors fuel or air ports are fouled 410012-001 Rev A (Apr 2002) Page 24 of 44 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Component Descriptions Capstone Model 330 MicroTurbine
