Text from PDF Page: 020

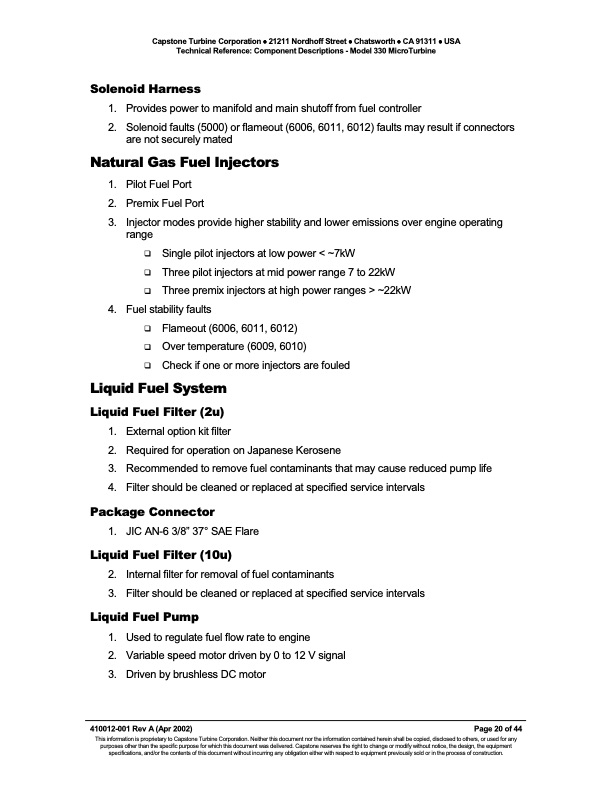

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model 330 MicroTurbine Solenoid Harness 1. Provides power to manifold and main shutoff from fuel controller 2. Solenoid faults (5000) or flameout (6006, 6011, 6012) faults may result if connectors are not securely mated Natural Gas Fuel Injectors Pilot Fuel Port 2. Premix Fuel Port 3. Injector modes provide higher stability and lower emissions over engine operating range Single pilot injectors at low power < ~7kW Three pilot injectors at mid power range 7 to 22kW Three premix injectors at high power ranges > ~22kW 4. Fuel stability faults Flameout (6006, 6011, 6012) Over temperature (6009, 6010) Check if one or more injectors are fouled Liquid Fuel System Liquid Fuel Filter (2u) 1. External option kit filter 2. Required for operation on Japanese Kerosene 3. Recommended to remove fuel contaminants that may cause reduced pump life 4. Filter should be cleaned or replaced at specified service intervals Package Connector 1. JIC AN-6 3/8” 37° SAE Flare Liquid Fuel Filter (10u) 2. Internal filter for removal of fuel contaminants 3. Filter should be cleaned or replaced at specified service intervals Liquid Fuel Pump 1. Used to regulate fuel flow rate to engine 2. Variable speed motor driven by 0 to 12 V signal 3. Driven by brushless DC motor 410012-001 Rev A (Apr 2002) Page 20 of 44 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Component Descriptions Capstone Model 330 MicroTurbine
