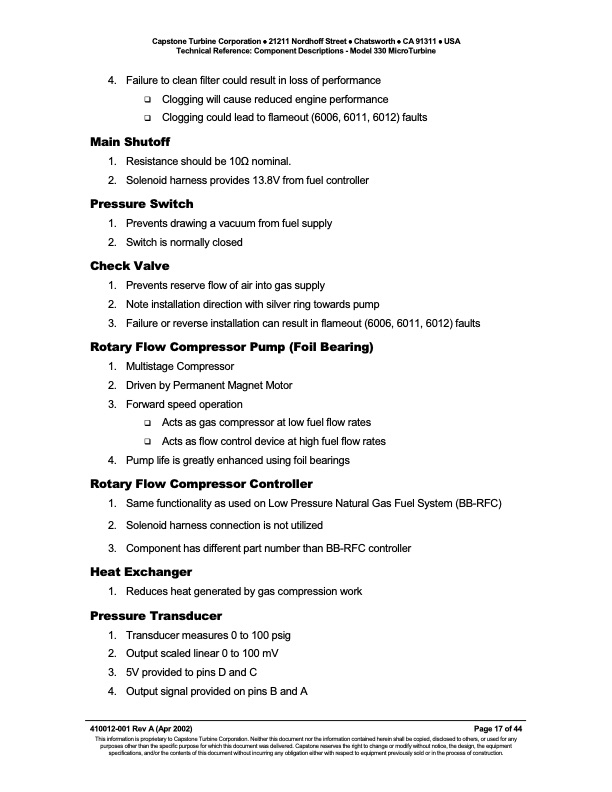

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model 330 MicroTurbine 4. Failure to clean filter could result in loss of performance Clogging will cause reduced engine performance Clogging could lead to flameout (6006, 6011, 6012) faults Main Shutoff 1. Resistance should be 10Ω nominal. 2. Solenoid harness provides 13.8V from fuel controller Pressure Switch 1. Prevents drawing a vacuum from fuel supply 2. Switch is normally closed Check Valve 1. Prevents reserve flow of air into gas supply 2. Note installation direction with silver ring towards pump 3. Failure or reverse installation can result in flameout (6006, 6011, 6012) faults Rotary Flow Compressor Pump (Foil Bearing) 1. Multistage Compressor 2. Driven by Permanent Magnet Motor 3. Forward speed operation Acts as gas compressor at low fuel flow rates Acts as flow control device at high fuel flow rates 4. Pump life is greatly enhanced using foil bearings Rotary Flow Compressor Controller 1. Same functionality as used on Low Pressure Natural Gas Fuel System (BB-RFC) Solenoid harness connection is not utilized Component has different part number than BB-RFC controller Heat Exchanger 1. Reduces heat generated by gas compression work Pressure Transducer 1. Transducer measures 0 to 100 psig 2. Output scaled linear 0 to 100 mV 3. 5V provided to pins D and C 4. Output signal provided on pins B and A 410012-001 Rev A (Apr 2002) Page 17 of 44 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Component Descriptions Capstone Model 330 MicroTurbine
