Text from PDF Page: 011

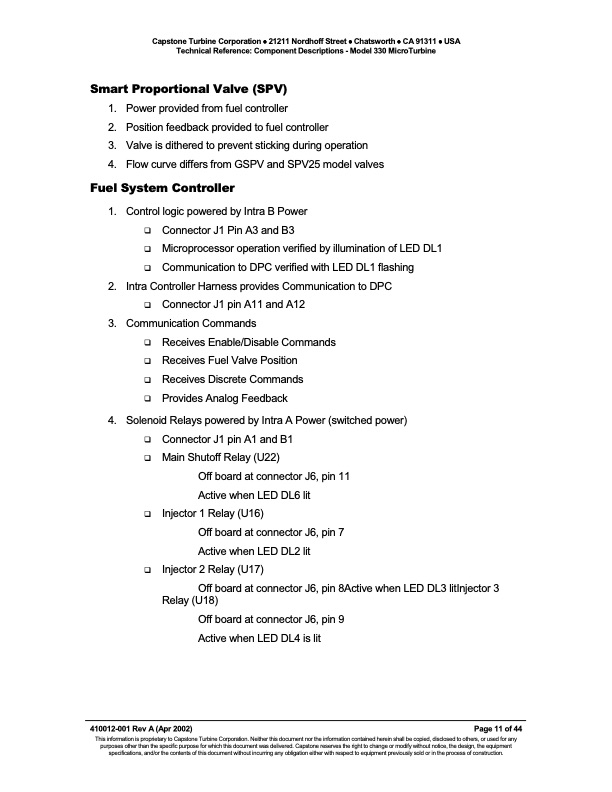

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model 330 MicroTurbine Smart Proportional Valve (SPV) 1. Power provided from fuel controller 2. Position feedback provided to fuel controller 3. Valve is dithered to prevent sticking during operation 4. Flow curve differs from GSPV and SPV25 model valves Fuel System Controller Control logic powered by Intra B Power Connector J1 Pin A3 and B3 Microprocessor operation verified by illumination of LED DL1 Communication to DPC verified with LED DL1 flashing 2. Intra Controller Harness provides Communication to DPC Connector J1 pin A11 and A12 3. Communication Commands Receives Enable/Disable Commands Receives Fuel Valve Position Receives Discrete Commands Provides Analog Feedback Solenoid Relays powered by Intra A Power (switched power) Connector J1 pin A1 and B1 Main Shutoff Relay (U22) Off board at connector J6, pin 11 Active when LED DL6 lit Injector 1 Relay (U16) Off board at connector J6, pin 7 Active when LED DL2 lit Injector 2 Relay (U17) Off board at connector J6, pin 8Active when LED DL3 litInjector 3 Relay (U18) Off board at connector J6, pin 9 Active when LED DL4 is lit 410012-001 Rev A (Apr 2002) Page 11 of 44 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Component Descriptions Capstone Model 330 MicroTurbine
