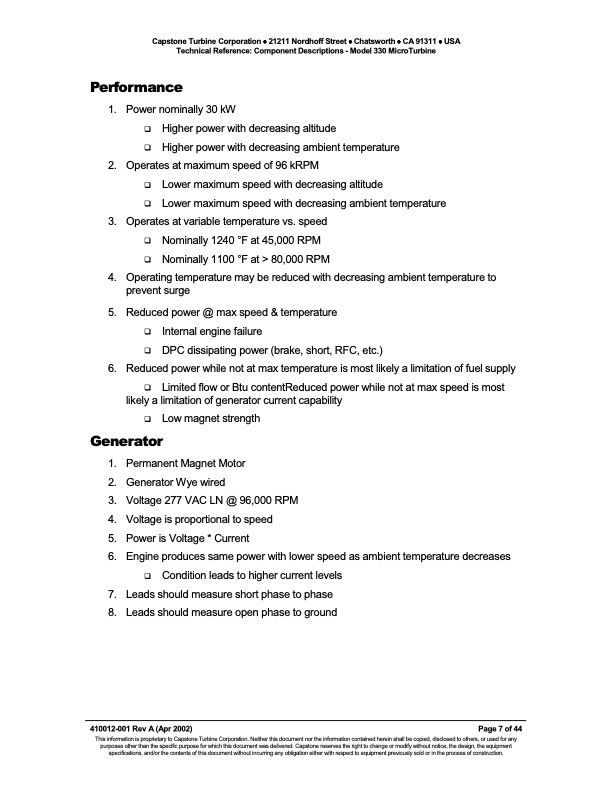

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model 330 MicroTurbine Performance Power nominally 30 kW Higher power with decreasing altitude Higher power with decreasing ambient temperature 2. Operates at maximum speed of 96 kRPM Lower maximum speed with decreasing altitude Lower maximum speed with decreasing ambient temperature 3. Operates at variable temperature vs. speed Nominally 1240 °F at 45,000 RPM Nominally 1100 °F at > 80,000 RPM 4. Operating temperature may be reduced with decreasing ambient temperature to prevent surge Reduced power @ max speed & temperature Internal engine failure DPC dissipating power (brake, short, RFC, etc.) 6. Reduced power while not at max temperature is most likely a limitation of fuel supply Limited flow or Btu contentReduced power while not at max speed is most likely a limitation of generator current capability Low magnet strength Generator Permanent Magnet Motor 2. Generator Wye wired 3. Voltage 277 VAC LN @ 96,000 RPM 4. Voltage is proportional to speed 5. Power is Voltage * Current 6. Engine produces same power with lower speed as ambient temperature decreases Condition leads to higher current levels 7. Leads should measure short phase to phase 8. Leads should measure open phase to ground 410012-001 Rev A (Apr 2002) Page 7 of 44 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Component Descriptions Capstone Model 330 MicroTurbine
