Text from PDF Page: 037

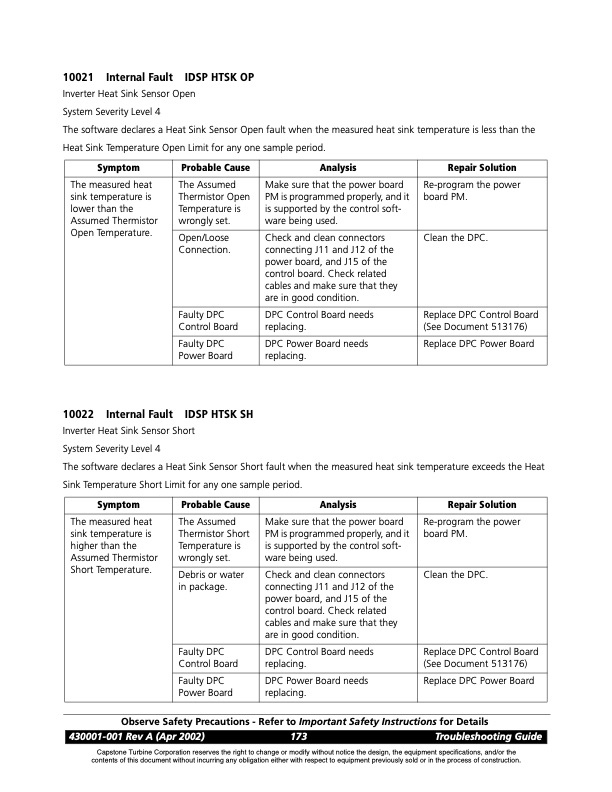

10021 Internal Fault IDSP HTSK OP Inverter Heat Sink Sensor Open System Severity Level 4 The software declares a Heat Sink Sensor Open fault when the measured heat sink temperature is less than the Heat Sink Temperature Open Limit for any one sample period. Symptom Probable Cause Analysis Repair Solution The measured heat sink temperature is lower than the Assumed Thermistor Open Temperature. The Assumed Thermistor Open Temperature is wrongly set. Make sure that the power board PM is programmed properly, and it is supported by the control soft- ware being used. Re-program the power board PM. Open/Loose Connection. Check and clean connectors connecting J11 and J12 of the power board, and J15 of the control board. Check related cables and make sure that they are in good condition. Clean the DPC. Faulty DPC Control Board DPC Control Board needs replacing. Replace DPC Control Board (See Document 513176) Faulty DPC Power Board DPC Power Board needs replacing. Replace DPC Power Board 10022 Internal Fault IDSP HTSK SH Inverter Heat Sink Sensor Short System Severity Level 4 The software declares a Heat Sink Sensor Short fault when the measured heat sink temperature exceeds the Heat Sink Temperature Short Limit for any one sample period. Symptom Probable Cause Analysis Repair Solution The measured heat sink temperature is higher than the Assumed Thermistor Short Temperature. The Assumed Thermistor Short Temperature is wrongly set. Make sure that the power board PM is programmed properly, and it is supported by the control soft- ware being used. Re-program the power board PM. Debris or water in package. Check and clean connectors connecting J11 and J12 of the power board, and J15 of the control board. Check related cables and make sure that they are in good condition. Clean the DPC. Faulty DPC Control Board DPC Control Board needs replacing. Replace DPC Control Board (See Document 513176) Faulty DPC Power Board DPC Power Board needs replacing. Replace DPC Power Board Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev A (Apr 2002) 173 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 8000 FAULT CODES Solenoid Faults
