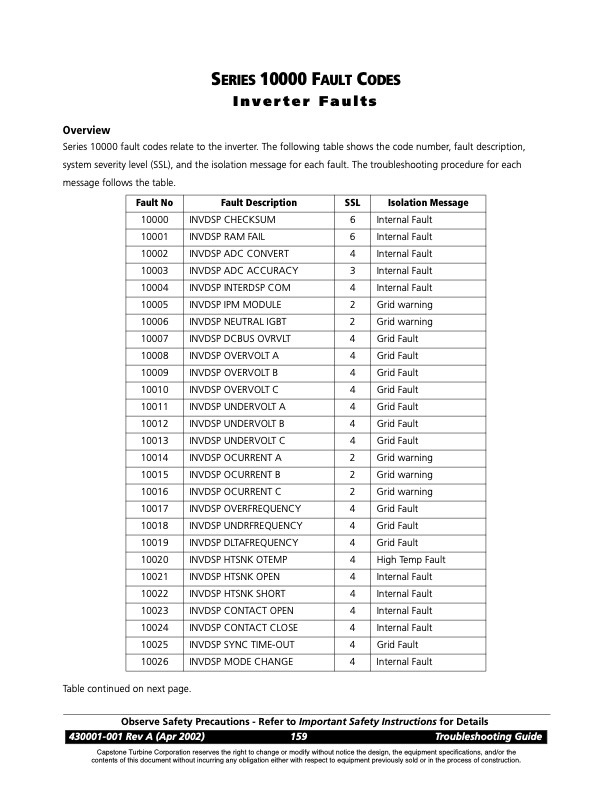

Overview SERIES 10000 FAULT CODES Inverter Faults Series 10000 fault codes relate to the inverter. The following table shows the code number, fault description, system severity level (SSL), and the isolation message for each fault. The troubleshooting procedure for each message follows the table. Fault No Fault Description SSL Isolation Message 10000 INVDSP CHECKSUM 6 Internal Fault 10001 INVDSP RAM FAIL 6 Internal Fault 10002 INVDSP ADC CONVERT 4 Internal Fault 10003 INVDSP ADC ACCURACY 3 Internal Fault 10004 INVDSP INTERDSP COM 4 Internal Fault 10005 INVDSP IPM MODULE 2 Grid warning 10006 INVDSP NEUTRAL IGBT 2 Grid warning 10007 INVDSP DCBUS OVRVLT 4 Grid Fault 10008 INVDSP OVERVOLT A 4 Grid Fault 10009 INVDSP OVERVOLT B 4 Grid Fault 10010 INVDSP OVERVOLT C 4 Grid Fault 10011 INVDSP UNDERVOLT A 4 Grid Fault 10012 INVDSP UNDERVOLT B 4 Grid Fault 10013 INVDSP UNDERVOLT C 4 Grid Fault 10014 INVDSP OCURRENT A 2 Grid warning 10015 INVDSP OCURRENT B 2 Grid warning 10016 INVDSP OCURRENT C 2 Grid warning 10017 INVDSP OVERFREQUENCY 4 Grid Fault 10018 INVDSP UNDRFREQUENCY 4 Grid Fault 10019 INVDSP DLTAFREQUENCY 4 Grid Fault 10020 INVDSP HTSNK OTEMP 4 High Temp Fault 10021 INVDSP HTSNK OPEN 4 Internal Fault 10022 INVDSP HTSNK SHORT 4 Internal Fault 10023 INVDSP CONTACT OPEN 4 Internal Fault 10024 INVDSP CONTACT CLOSE 4 Internal Fault 10025 INVDSP SYNC TIME-OUT 4 Grid Fault 10026 INVDSP MODE CHANGE 4 Internal Fault Table continued on next page. Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev A (Apr 2002) 159 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 8000 FAULT CODES Solenoid Faults
