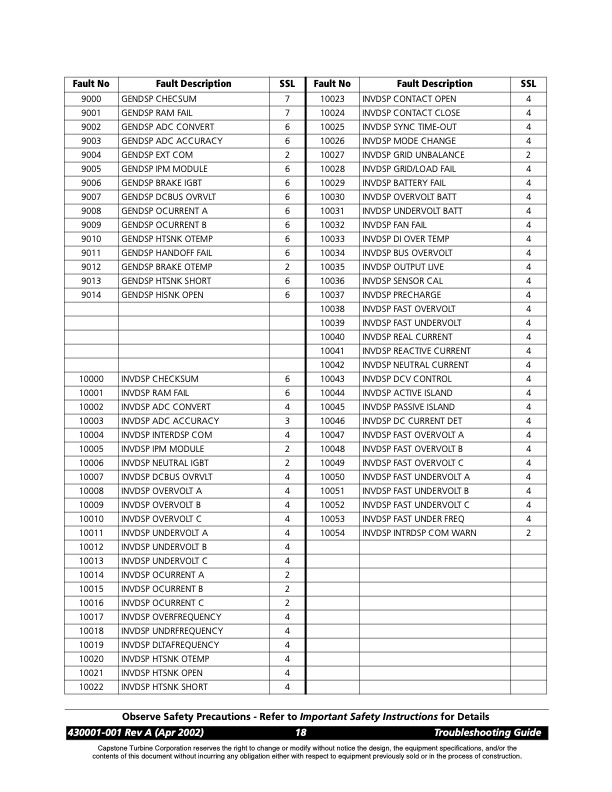

Fault No Fault Description SSL Fault No Fault Description SSL 9000 GENDSP CHECSUM 7 10023 INVDSP CONTACT OPEN 4 9001 GENDSP RAM FAIL 7 10024 INVDSP CONTACT CLOSE 4 9002 GENDSP ADC CONVERT 6 10025 INVDSP SYNC TIME-OUT 4 9003 GENDSP ADC ACCURACY 6 10026 INVDSP MODE CHANGE 4 9004 GENDSP EXT COM 2 10027 INVDSP GRID UNBALANCE 2 9005 GENDSP IPM MODULE 6 10028 INVDSP GRID/LOAD FAIL 4 9006 GENDSP BRAKE IGBT 6 10029 INVDSP BATTERY FAIL 4 9007 GENDSP DCBUS OVRVLT 6 10030 INVDSP OVERVOLT BATT 4 9008 GENDSP OCURRENT A 6 10031 INVDSP UNDERVOLT BATT 4 9009 GENDSP OCURRENT B 6 10032 INVDSP FAN FAIL 4 9010 GENDSP HTSNK OTEMP 6 10033 INVDSP DI OVER TEMP 4 9011 GENDSP HANDOFF FAIL 6 10034 INVDSP BUS OVERVOLT 4 9012 GENDSP BRAKE OTEMP 2 10035 INVDSP OUTPUT LIVE 4 9013 GENDSP HTSNK SHORT 6 10036 INVDSP SENSOR CAL 4 9014 GENDSP HISNK OPEN 6 10037 INVDSP PRECHARGE 4 10038 INVDSP FAST OVERVOLT 4 10039 INVDSP FAST UNDERVOLT 4 10040 INVDSP REAL CURRENT 4 10041 INVDSP REACTIVE CURRENT 4 10042 INVDSP NEUTRAL CURRENT 4 10000 INVDSP CHECKSUM 6 10043 INVDSP DCV CONTROL 4 10001 INVDSP RAM FAIL 6 10044 INVDSP ACTIVE ISLAND 4 10002 INVDSP ADC CONVERT 4 10045 INVDSP PASSIVE ISLAND 4 10003 INVDSP ADC ACCURACY 3 10046 INVDSP DC CURRENT DET 4 10004 INVDSP INTERDSP COM 4 10047 INVDSP FAST OVERVOLT A 4 10005 INVDSP IPM MODULE 2 10048 INVDSP FAST OVERVOLT B 4 10006 INVDSP NEUTRAL IGBT 2 10049 INVDSP FAST OVERVOLT C 4 10007 INVDSP DCBUS OVRVLT 4 10050 INVDSP FAST UNDERVOLT A 4 10008 INVDSP OVERVOLT A 4 10051 INVDSP FAST UNDERVOLT B 4 10009 INVDSP OVERVOLT B 4 10052 INVDSP FAST UNDERVOLT C 4 10010 INVDSP OVERVOLT C 4 10053 INVDSP FAST UNDER FREQ 4 10011 INVDSP UNDERVOLT A 4 10054 INVDSP INTRDSP COM WARN 2 10012 INVDSP UNDERVOLT B 4 10013 INVDSP UNDERVOLT C 4 10014 INVDSP OCURRENT A 2 10015 INVDSP OCURRENT B 2 10016 INVDSP OCURRENT C 2 10017 INVDSP OVERFREQUENCY 4 10018 INVDSP UNDRFREQUENCY 4 10019 INVDSP DLTAFREQUENCY 4 10020 INVDSP HTSNK OTEMP 4 10021 INVDSP HTSNK OPEN 4 10022 INVDSP HTSNK SHORT 4 Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev A (Apr 2002) 18 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE MICROTURBINE MODEL 330 TROUBLESHOOTING GUIDE
