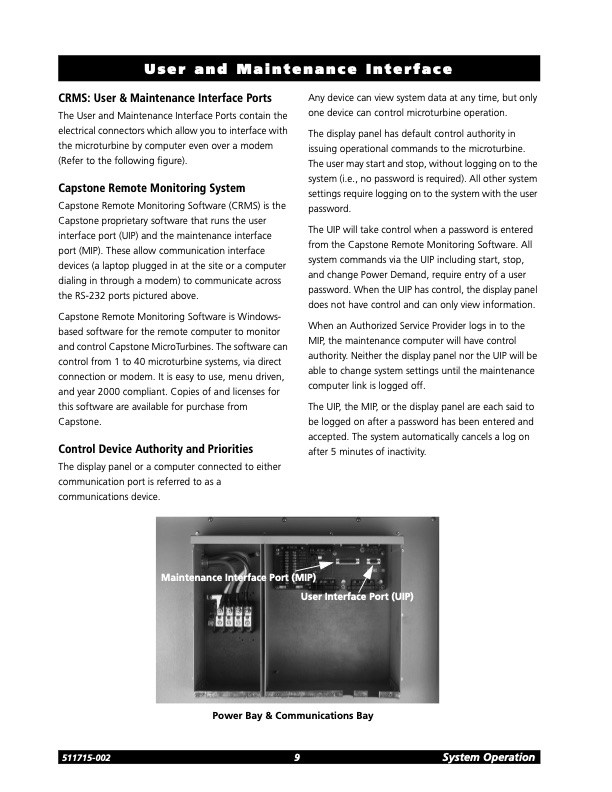

User and Maintenance Interface CRMS: User & Maintenance Interface Ports The User and Maintenance Interface Ports contain the electrical connectors which allow you to interface with the microturbine by computer even over a modem (Refer to the following figure). Capstone Remote Monitoring System Capstone Remote Monitoring Software (CRMS) is the Capstone proprietary software that runs the user interface port (UIP) and the maintenance interface port (MIP). These allow communication interface devices (a laptop plugged in at the site or a computer dialing in through a modem) to communicate across the RS-232 ports pictured above. Capstone Remote Monitoring Software is Windows- based software for the remote computer to monitor and control Capstone MicroTurbines. The software can control from 1 to 40 microturbine systems, via direct connection or modem. It is easy to use, menu driven, and year 2000 compliant. Copies of and licenses for this software are available for purchase from Capstone. Control Device Authority and Priorities The display panel or a computer connected to either communication port is referred to as a communications device. Any device can view system data at any time, but only one device can control microturbine operation. The display panel has default control authority in issuing operational commands to the microturbine. The user may start and stop, without logging on to the system (i.e., no password is required). All other system settings require logging on to the system with the user password. The UIP will take control when a password is entered from the Capstone Remote Monitoring Software. All system commands via the UIP including start, stop, and change Power Demand, require entry of a user password. When the UIP has control, the display panel does not have control and can only view information. When an Authorized Service Provider logs in to the MIP, the maintenance computer will have control authority. Neither the display panel nor the UIP will be able to change system settings until the maintenance computer link is logged off. The UIP, the MIP, or the display panel are each said to be logged on after a password has been entered and accepted. The system automatically cancels a log on after 5 minutes of inactivity. Maintenance Interface Port (MIP) User Interface Port (UIP) Power Bay & Communications Bay 511715-002 9 System OperationPDF Image | CAPSTONE MICROTURBINE MODEL 330 SYSTEM MANUAL
