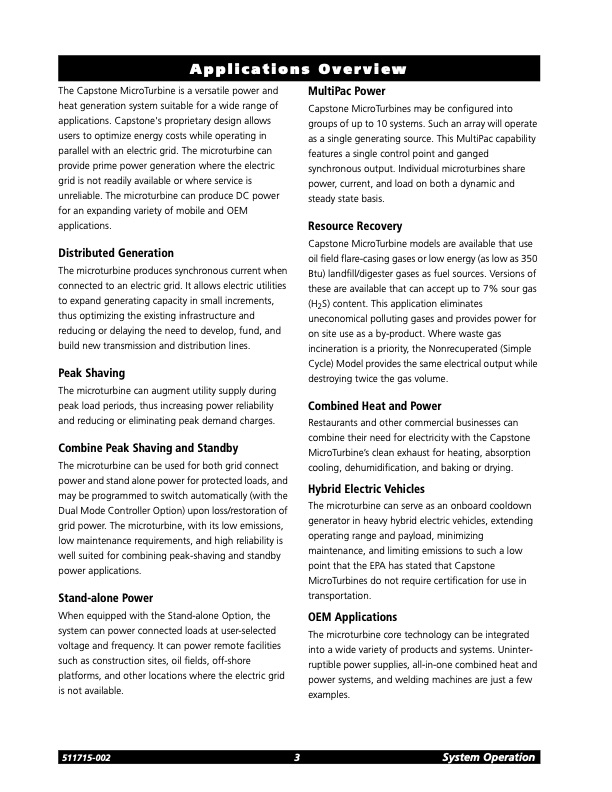

The Capstone MicroTurbine is a versatile power and heat generation system suitable for a wide range of applications. Capstone's proprietary design allows users to optimize energy costs while operating in parallel with an electric grid. The microturbine can provide prime power generation where the electric grid is not readily available or where service is unreliable. The microturbine can produce DC power for an expanding variety of mobile and OEM applications. Distributed Generation The microturbine produces synchronous current when connected to an electric grid. It allows electric utilities to expand generating capacity in small increments, thus optimizing the existing infrastructure and reducing or delaying the need to develop, fund, and build new transmission and distribution lines. Peak Shaving The microturbine can augment utility supply during peak load periods, thus increasing power reliability and reducing or eliminating peak demand charges. Combine Peak Shaving and Standby The microturbine can be used for both grid connect power and stand alone power for protected loads, and may be programmed to switch automatically (with the Dual Mode Controller Option) upon loss/restoration of grid power. The microturbine, with its low emissions, low maintenance requirements, and high reliability is well suited for combining peak-shaving and standby power applications. Stand-alone Power When equipped with the Stand-alone Option, the system can power connected loads at user-selected voltage and frequency. It can power remote facilities such as construction sites, oil fields, off-shore platforms, and other locations where the electric grid is not available. MultiPac Power Capstone MicroTurbines may be configured into groups of up to 10 systems. Such an array will operate as a single generating source. This MultiPac capability features a single control point and ganged synchronous output. Individual microturbines share power, current, and load on both a dynamic and steady state basis. Resource Recovery Capstone MicroTurbine models are available that use oil field flare-casing gases or low energy (as low as 350 Btu) landfill/digester gases as fuel sources. Versions of these are available that can accept up to 7% sour gas (H2S) content. This application eliminates uneconomical polluting gases and provides power for on site use as a by-product. Where waste gas incineration is a priority, the Nonrecuperated (Simple Cycle) Model provides the same electrical output while destroying twice the gas volume. Combined Heat and Power Restaurants and other commercial businesses can combine their need for electricity with the Capstone MicroTurbine’s clean exhaust for heating, absorption cooling, dehumidification, and baking or drying. Hybrid Electric Vehicles The microturbine can serve as an onboard cooldown generator in heavy hybrid electric vehicles, extending operating range and payload, minimizing maintenance, and limiting emissions to such a low point that the EPA has stated that Capstone MicroTurbines do not require certification for use in transportation. OEM Applications The microturbine core technology can be integrated into a wide variety of products and systems. Uninter- ruptible power supplies, all-in-one combined heat and power systems, and welding machines are just a few examples. Applications Overview 511715-002 3 System OperationPDF Image | CAPSTONE MICROTURBINE MODEL 330 SYSTEM MANUAL
