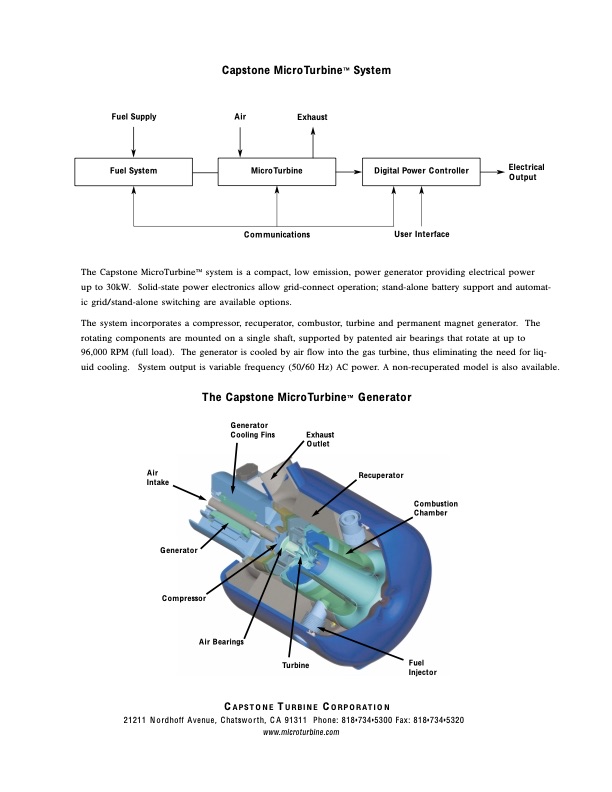

Capstone MicroTurbineTM System Fuel Supply Air Exhaust Communications User Interface Electrical Output Fuel System MicroTurbine The Capstone MicroTurbineTM system is a compact, low emission, power generator providing electrical power up to 30kW. Solid-state power electronics allow grid-connect operation; stand-alone battery support and automat- ic grid/stand-alone switching are available options. The system incorporates a compressor, recuperator, combustor, turbine and permanent magnet generator. The rotating components are mounted on a single shaft, supported by patented air bearings that rotate at up to 96,000 RPM (full load). The generator is cooled by air flow into the gas turbine, thus eliminating the need for liq- uid cooling. System output is variable frequency (50/60 Hz) AC power. A non-recuperated model is also available. The Capstone MicroTurbineTM Generator Generator Cooling Fins Exhaust Outlet Air Intake Generator Compressor Recuperator 21211 Nordhoff Avenue, Chatsworth, CA 91311 Phone: 818•734•5300 Fax: 818•734•5320 www.microturbine.com Digital Power Controller Combustion Chamber Air Bearings Turbine Fuel Injector CAPSTONE TURBINE CORPORATIONPDF Image | 330 Silencer
