Text from PDF Page: 002

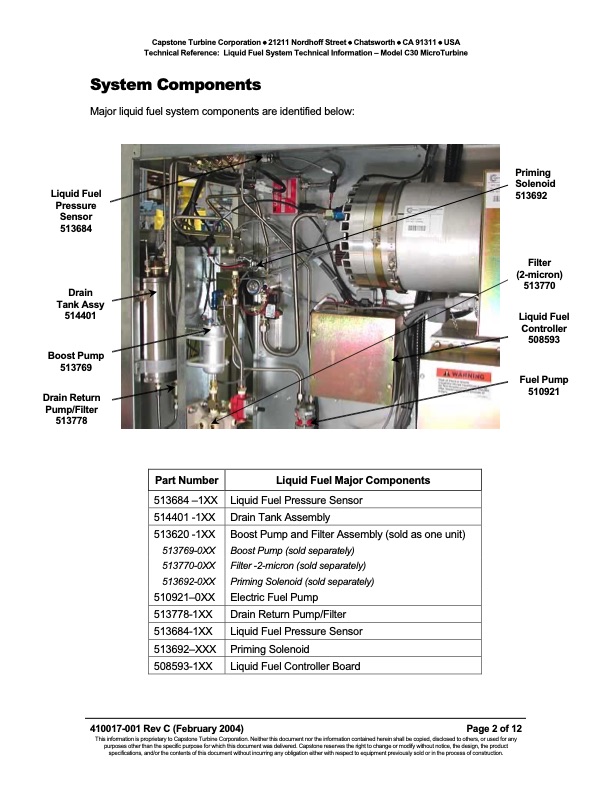

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Liquid Fuel System Technical Information – Model C30 MicroTurbine System Components Major liquid fuel system components are identified below: Liquid Fuel Pressure Sensor 513684 Drain Tank Assy 514401 Boost Pump 513769 Drain Return Pump/Filter 513778 Priming Solenoid 513692 Filter (2-micron) 513770 Liquid Fuel Controller 508593 Fuel Pump 510921 Part Number 513684 –1XX 514401 -1XX 513620 -1XX 513769-0XX 513770-0XX 513692-0XX 510921–0XX 513778-1XX 513684-1XX 513692–XXX 508593-1XX Liquid Fuel Major Components Liquid Fuel Pressure Sensor Drain Tank Assembly Boost Pump and Filter Assembly (sold as one unit) Boost Pump (sold separately) Filter -2-micron (sold separately) Priming Solenoid (sold separately) Electric Fuel Pump Drain Return Pump/Filter Liquid Fuel Pressure Sensor Priming Solenoid Liquid Fuel Controller Board 410017-001 Rev C (February 2004) Page 2 of 12 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Liquid Fuel System Technical Information – Model C30 MicroTurbine
