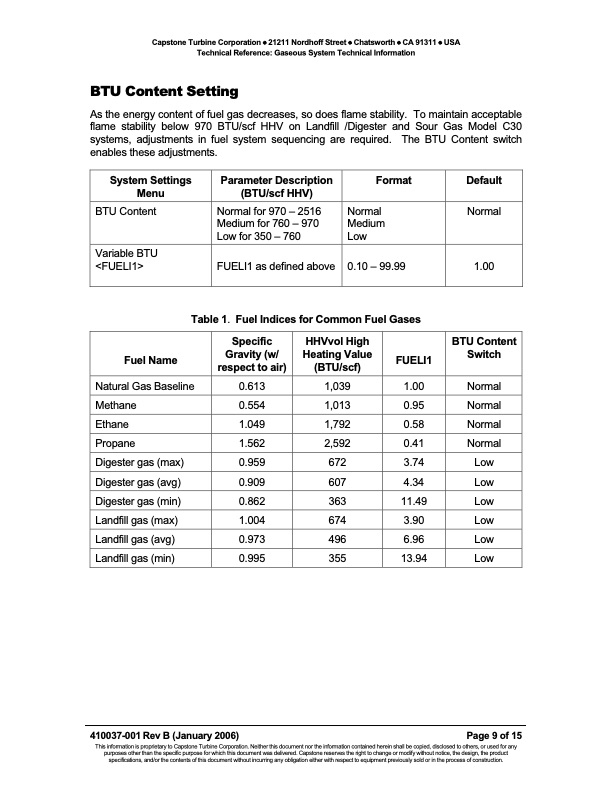

Text from PDF Page: 009

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Gaseous System Technical Information BTU Content Setting As the energy content of fuel gas decreases, so does flame stability. To maintain acceptable flame stability below 970 BTU/scf HHV on Landfill /Digester and Sour Gas Model C30 systems, adjustments in fuel system sequencing are required. The BTU Content switch enables these adjustments. System Settings Parameter Description Format Default Menu (BTU/scf HHV) Table 1. Fuel Indices for Common Fuel Gases BTU Content Normal for 970 – 2516 Medium for 760 – 970 Low for 350 – 760 Normal Medium Low Normal Variable BTU FUELI1 as defined above 0.10 – 99.99 1.00 Fuel Name Specific Gravity (w/ respect to air) HHVvol High Heating Value (BTU/scf) FUELI1 BTU Content Switch Natural Gas Baseline Methane Ethane Propane Digester gas (max) Digester gas (avg) Digester gas (min) Landfill gas (max) Landfill gas (avg) Landfill gas (min) 0.613 1,039 1.00 0.554 1,013 0.95 1.049 1,792 0.58 1.562 2,592 0.41 0.959 672 3.74 0.909 607 4.34 0.862 363 11.49 1.004 674 3.90 0.973 496 6.96 0.995 355 13.94 Normal Normal Normal Normal Low Low Low Low Low Low 410037-001 Rev B (January 2006) Page 9 of 15 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
