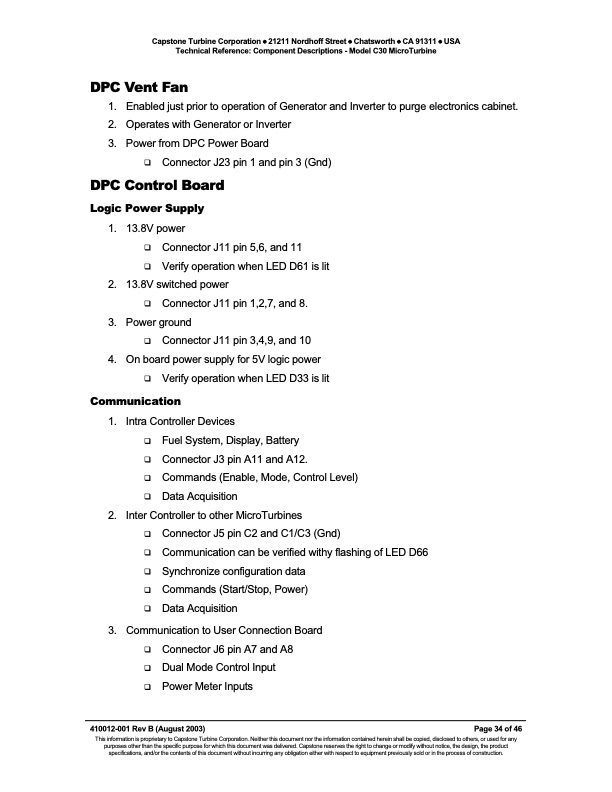

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model C30 MicroTurbine DPC Vent Fan 1. Enabled just prior to operation of Generator and Inverter to purge electronics cabinet. 2. Operates with Generator or Inverter 3. Power from DPC Power Board ConnectorJ23pin1andpin3(Gnd) DPC Control Board Logic Power Supply 1. 13.8V power ConnectorJ11pin5,6,and11 VerifyoperationwhenLEDD61islit 2. 13.8V switched power ConnectorJ11pin1,2,7,and8. 3. Power ground ConnectorJ11pin3,4,9,and10 4. On board power supply for 5V logic power VerifyoperationwhenLEDD33islit Communication 1. Intra Controller Devices FuelSystem,Display,Battery ConnectorJ3pinA11andA12. Commands(Enable,Mode,ControlLevel) DataAcquisition 2. Inter Controller to other MicroTurbines ConnectorJ5pinC2andC1/C3(Gnd) CommunicationcanbeverifiedwithyflashingofLEDD66 Synchronizeconfigurationdata Commands(Start/Stop,Power) DataAcquisition 3. Communication to User Connection Board ConnectorJ6pinA7andA8 DualModeControlInput PowerMeterInputs 410012-001 Rev B (August 2003) Page 34 of 46 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Component Descriptions Capstone Model C30 MicroTurbine
