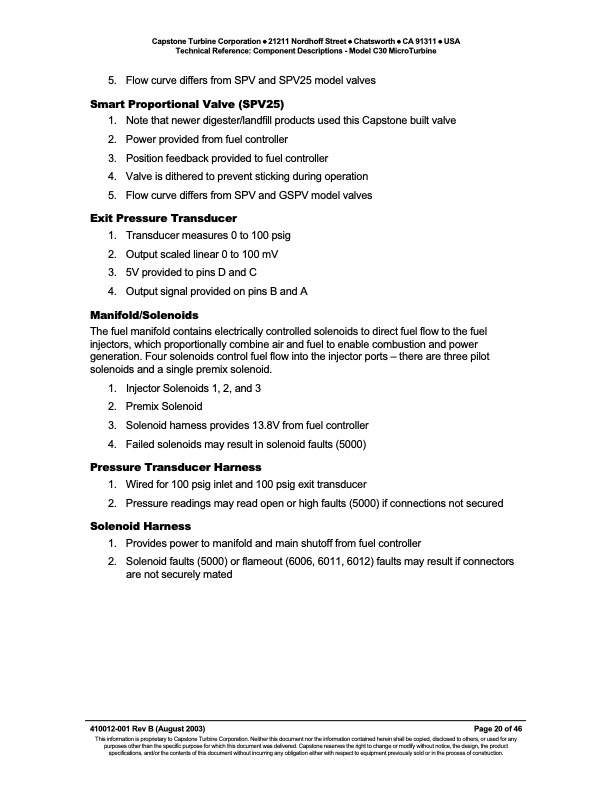

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model C30 MicroTurbine 5. Flow curve differs from SPV and SPV25 model valves Smart Proportional Valve (SPV25) 1. Note that newer digester/landfill products used this Capstone built valve 2. Power provided from fuel controller 3. Position feedback provided to fuel controller 4. Valve is dithered to prevent sticking during operation 5. Flow curve differs from SPV and GSPV model valves Exit Pressure Transducer 1. Transducer measures 0 to 100 psig 2. Output scaled linear 0 to 100 mV 3. 5V provided to pins D and C 4. Output signal provided on pins B and A Manifold/Solenoids The fuel manifold contains electrically controlled solenoids to direct fuel flow to the fuel injectors, which proportionally combine air and fuel to enable combustion and power generation. Four solenoids control fuel flow into the injector ports – there are three pilot solenoids and a single premix solenoid. 1. Injector Solenoids 1, 2, and 3 2. Premix Solenoid 3. Solenoid harness provides 13.8V from fuel controller 4. Failed solenoids may result in solenoid faults (5000) Pressure Transducer Harness 1. Wired for 100 psig inlet and 100 psig exit transducer 2. Pressure readings may read open or high faults (5000) if connections not secured Solenoid Harness 1. Provides power to manifold and main shutoff from fuel controller 2. Solenoid faults (5000) or flameout (6006, 6011, 6012) faults may result if connectors are not securely mated 410012-001 Rev B (August 2003) Page 20 of 46 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Component Descriptions Capstone Model C30 MicroTurbine
