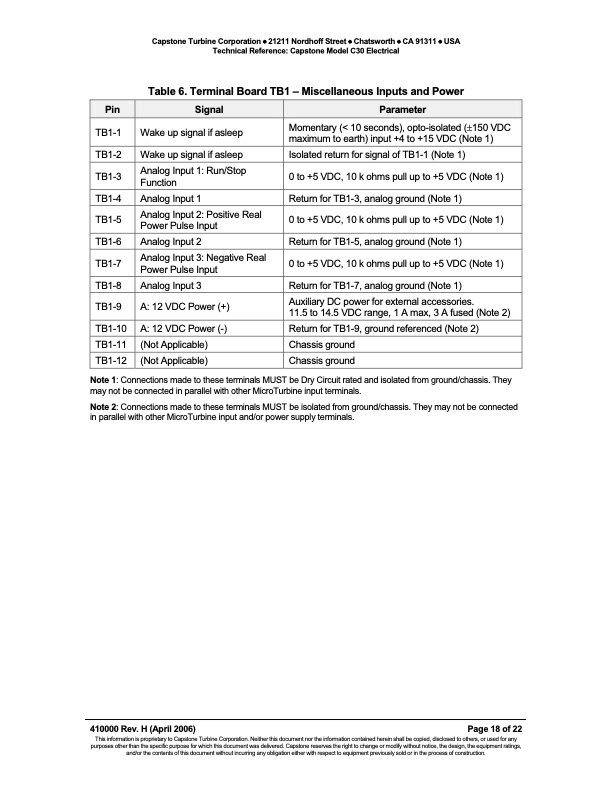

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone Model C30 Electrical Table 6. Terminal Board TB1 – Miscellaneous Inputs and Power Pin Signal Parameter TB1-1 Wake up signal if asleep TB1-2 Wake up signal if asleep TB1-3 Analog Input 1: Run/Stop Function TB1-4 Analog Input 1 TB1-5 Analog Input 2: Positive Real Power Pulse Input TB1-6 Analog Input 2 TB1-7 Analog Input 3: Negative Real Power Pulse Input TB1-8 Analog Input 3 TB1-9 A: 12 VDC Power (+) TB1-10 A: 12 VDC Power (-) TB1-11 (Not Applicable) TB1-12 (Not Applicable) Momentary (< 10 seconds), opto-isolated (±150 VDC maximum to earth) input +4 to +15 VDC (Note 1) Isolated return for signal of TB1-1 (Note 1) 0to+5VDC,10kohmspullupto+5VDC(Note1) Return for TB1-3, analog ground (Note 1) 0to+5VDC,10kohmspullupto+5VDC(Note1) Return for TB1-5, analog ground (Note 1) 0to+5VDC,10kohmspullupto+5VDC(Note1) Return for TB1-7, analog ground (Note 1) Auxiliary DC power for external accessories. 11.5 to 14.5 VDC range, 1 A max, 3 A fused (Note 2) Return for TB1-9, ground referenced (Note 2) Chassis ground Chassis ground Note 1: Connections made to these terminals MUST be Dry Circuit rated and isolated from ground/chassis. They may not be connected in parallel with other MicroTurbine input terminals. Note 2: Connections made to these terminals MUST be isolated from ground/chassis. They may not be connected in parallel with other MicroTurbine input and/or power supply terminals. 410000 Rev. H (April 2006) Page 18 of 22 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C30 Electrical
