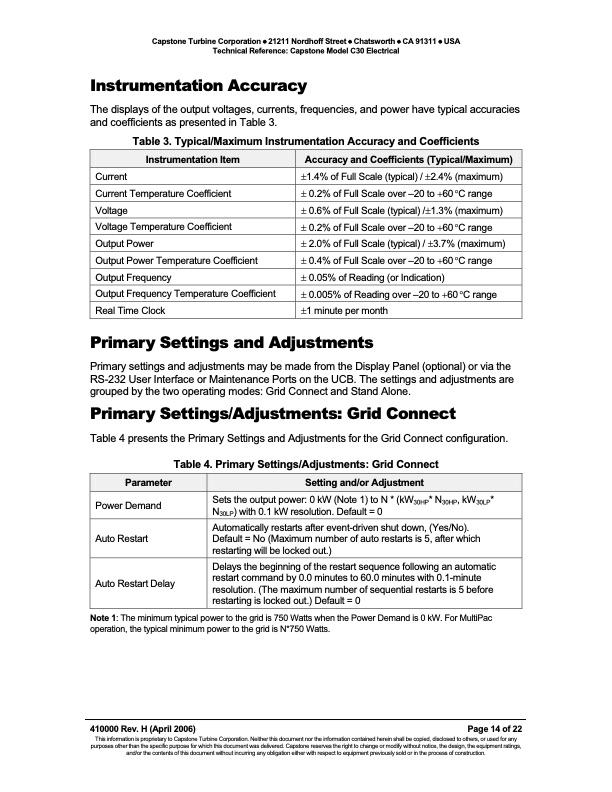

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone Model C30 Electrical Instrumentation Accuracy The displays of the output voltages, currents, frequencies, and power have typical accuracies and coefficients as presented in Table 3. Table 3. Typical/Maximum Instrumentation Accuracy and Coefficients Instrumentation Item Accuracy and Coefficients (Typical/Maximum) Current Current Temperature Coefficient Voltage Voltage Temperature Coefficient Output Power Output Power Temperature Coefficient Output Frequency Output Frequency Temperature Coefficient Real Time Clock ±1.4% of Full Scale (typical) / ±2.4% (maximum) ± 0.2% of Full Scale over –20 to +60 °C range ± 0.6% of Full Scale (typical) /±1.3% (maximum) ± 0.2% of Full Scale over –20 to +60 °C range ± 2.0% of Full Scale (typical) / ±3.7% (maximum) ± 0.4% of Full Scale over –20 to +60 °C range ± 0.05% of Reading (or Indication) ± 0.005% of Reading over –20 to +60 °C range ±1 minute per month Primary Settings and Adjustments Primary settings and adjustments may be made from the Display Panel (optional) or via the RS-232 User Interface or Maintenance Ports on the UCB. The settings and adjustments are grouped by the two operating modes: Grid Connect and Stand Alone. Primary Settings/Adjustments: Grid Connect Table 4 presents the Primary Settings and Adjustments for the Grid Connect configuration. Parameter Setting and/or Adjustment Power Demand Auto Restart Table 4. Primary Settings/Adjustments: Grid Connect Sets the output power: 0 kW (Note 1) to N * (kW30HP* N30HP, kW30LP* N30LP) with 0.1 kW resolution. Default = 0 Automatically restarts after event-driven shut down, (Yes/No). Default = No (Maximum number of auto restarts is 5, after which restarting will be locked out.) Auto Restart Delay Delays the beginning of the restart sequence following an automatic restart command by 0.0 minutes to 60.0 minutes with 0.1-minute resolution. (The maximum number of sequential restarts is 5 before restarting is locked out.) Default = 0 Note 1: The minimum typical power to the grid is 750 Watts when the Power Demand is 0 kW. For MultiPac operation, the typical minimum power to the grid is N*750 Watts. 410000 Rev. H (April 2006) Page 14 of 22 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C30 Electrical
