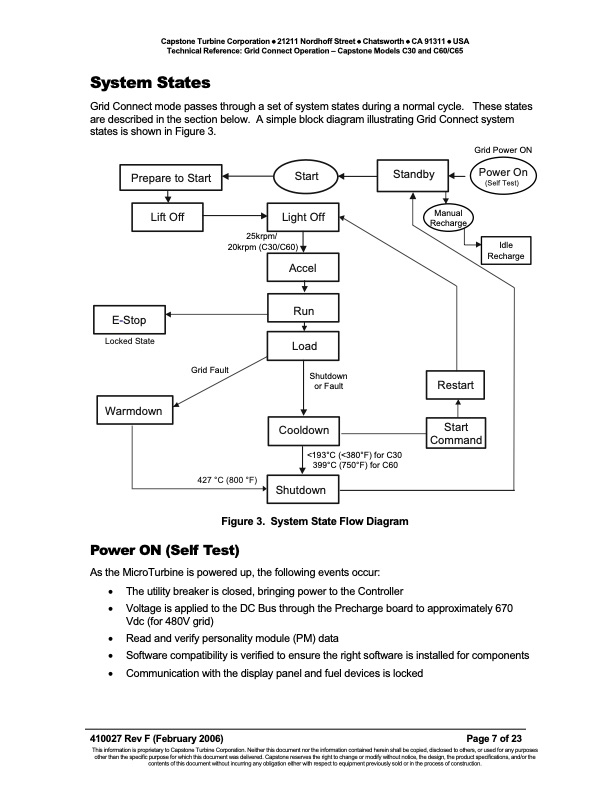

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Grid Connect Operation – Capstone Models C30 and C60/C65 System States Grid Connect mode passes through a set of system states during a normal cycle. These states are described in the section below. A simple block diagram illustrating Grid Connect system states is shown in Figure 3. Prepare to Start Start Grid Power ON Power On (Self Test) Lift Off Light Off Manual Recharge Idle Recharge Accel Run E-Stop Locked State 25krpm/ 20krpm (C30/C60) Grid Fault 427 °C (800 °F) Load Shutdown or Fault <193°C (<380°F) for C30 399°C (750°F) for C60 Restart Warmdown Cooldown Start Command Shutdown Figure 3. System State Flow Diagram Power ON (Self Test) As the MicroTurbine is powered up, the following events occur: • The utility breaker is closed, bringing power to the Controller • Voltage is applied to the DC Bus through the Precharge board to approximately 670 Vdc (for 480V grid) • Read and verify personality module (PM) data • Software compatibility is verified to ensure the right software is installed for components • Communication with the display panel and fuel devices is locked 410027 Rev F (February 2006) Page 7 of 23 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. StandbyPDF Image | TECH REF C30 Grid Connect Op
