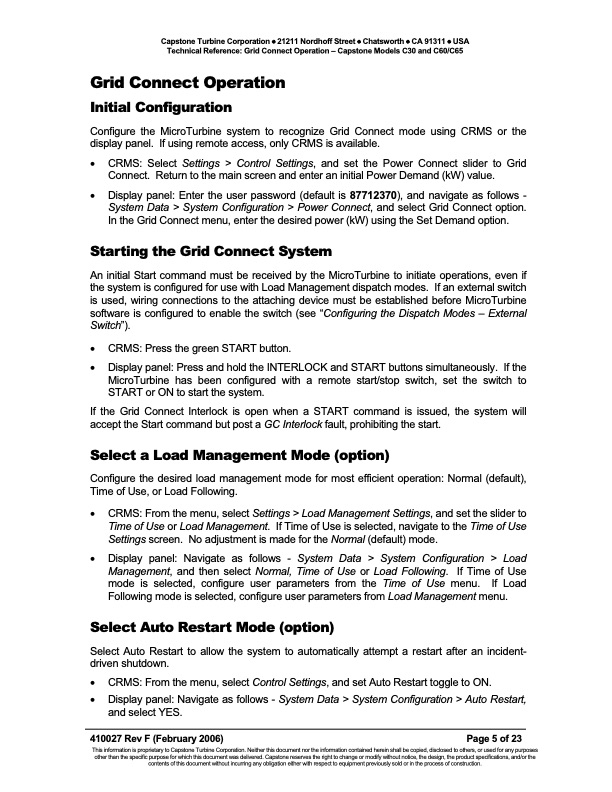

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Grid Connect Operation – Capstone Models C30 and C60/C65 Grid Connect Operation Initial Configuration Configure the MicroTurbine system to recognize Grid Connect mode using CRMS or the display panel. If using remote access, only CRMS is available. • CRMS: Select Settings > Control Settings, and set the Power Connect slider to Grid Connect. Return to the main screen and enter an initial Power Demand (kW) value. • Display panel: Enter the user password (default is 87712370), and navigate as follows - System Data > System Configuration > Power Connect, and select Grid Connect option. In the Grid Connect menu, enter the desired power (kW) using the Set Demand option. Starting the Grid Connect System An initial Start command must be received by the MicroTurbine to initiate operations, even if the system is configured for use with Load Management dispatch modes. If an external switch is used, wiring connections to the attaching device must be established before MicroTurbine software is configured to enable the switch (see “Configuring the Dispatch Modes – External Switch”). • CRMS: Press the green START button. • Display panel: Press and hold the INTERLOCK and START buttons simultaneously. If the MicroTurbine has been configured with a remote start/stop switch, set the switch to START or ON to start the system. If the Grid Connect Interlock is open when a START command is issued, the system will accept the Start command but post a GC Interlock fault, prohibiting the start. Select a Load Management Mode (option) Configure the desired load management mode for most efficient operation: Normal (default), Time of Use, or Load Following. • CRMS: From the menu, select Settings > Load Management Settings, and set the slider to Time of Use or Load Management. If Time of Use is selected, navigate to the Time of Use Settings screen. No adjustment is made for the Normal (default) mode. • Display panel: Navigate as follows - System Data > System Configuration > Load Management, and then select Normal, Time of Use or Load Following. If Time of Use mode is selected, configure user parameters from the Time of Use menu. If Load Following mode is selected, configure user parameters from Load Management menu. Select Auto Restart Mode (option) Select Auto Restart to allow the system to automatically attempt a restart after an incident- driven shutdown. • CRMS: From the menu, select Control Settings, and set Auto Restart toggle to ON. • Display panel: Navigate as follows - System Data > System Configuration > Auto Restart, and select YES. 410027 Rev F (February 2006) Page 5 of 23 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | TECH REF C30 Grid Connect Op
