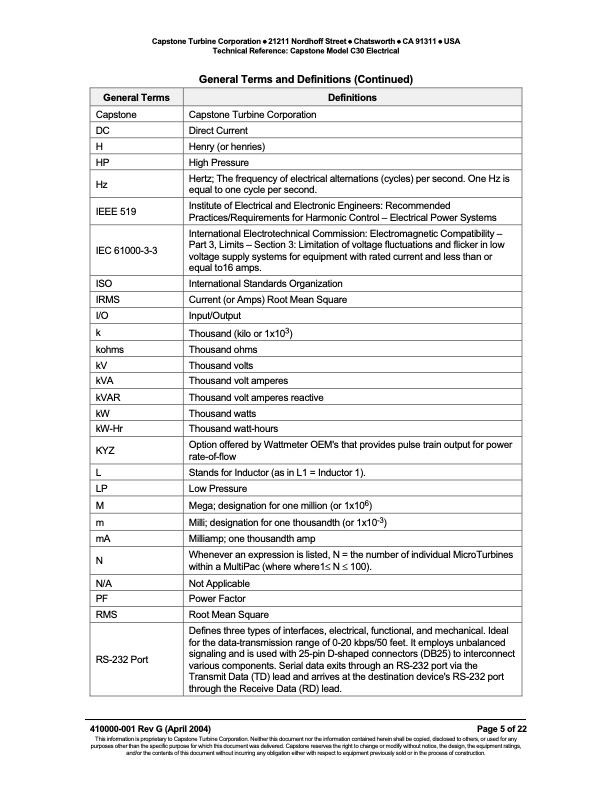

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone Model C30 Electrical General Terms and Definitions (Continued) Capstone Capstone Turbine Corporation DC Direct Current H Henry (or henries) HP High Pressure General Terms Definitions Hz IEEE 519 Hertz; The frequency of electrical alternations (cycles) per second. One Hz is equal to one cycle per second. Institute of Electrical and Electronic Engineers: Recommended Practices/Requirements for Harmonic Control – Electrical Power Systems IEC 61000-3-3 International Electrotechnical Commission: Electromagnetic Compatibility – Part 3, Limits – Section 3: Limitation of voltage fluctuations and flicker in low voltage supply systems for equipment with rated current and less than or equal to16 amps. ISO International Standards Organization IRMS Current (or Amps) Root Mean Square I/O Input/Output k Thousand (kilo or 1x103) kohms Thousand ohms kV Thousand volts kVA Thousand volt amperes kVAR Thousand volt amperes reactive kW Thousand watts kW-Hr Thousand watt-hours KYZ Option offered by Wattmeter OEM's that provides pulse train output for power rate-of-flow L Stands for Inductor (as in L1 = Inductor 1). LP Low Pressure M Mega; designation for one million (or 1x106) m Milli; designation for one thousandth (or 1x10-3) mA Milliamp; one thousandth amp N Whenever an expression is listed, N = the number of individual MicroTurbines within a MultiPac (where where1≤ N ≤ 100). N/A Not Applicable PF Power Factor RMS Root Mean Square 410000-001 Rev G (April 2004) Page 5 of 22 RS-232 Port Defines three types of interfaces, electrical, functional, and mechanical. Ideal for the data-transmission range of 0-20 kbps/50 feet. It employs unbalanced signaling and is used with 25-pin D-shaped connectors (DB25) to interconnect various components. Serial data exits through an RS-232 port via the Transmit Data (TD) lead and arrives at the destination device's RS-232 port through the Receive Data (RD) lead. This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | TECH REF 30 ELEC
