PDF Publication Title:
Text from PDF Page: 002

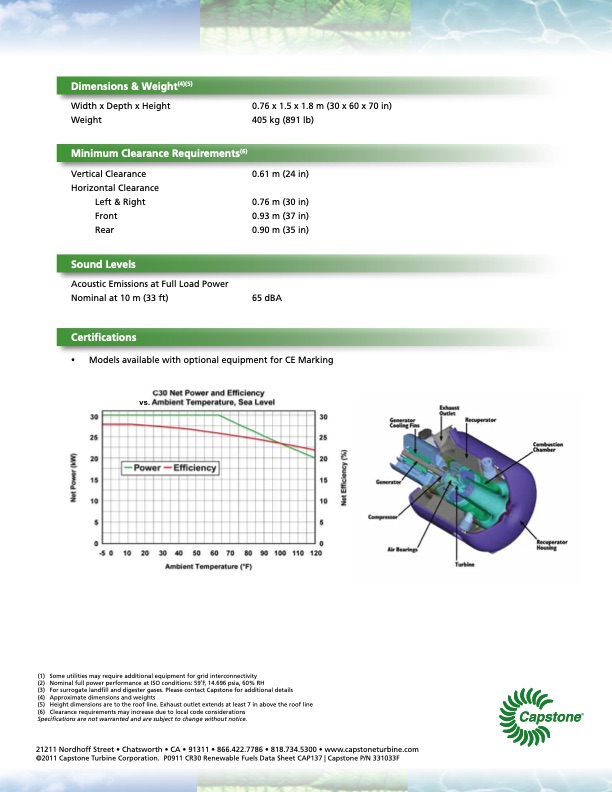

Dimensions & Weight(4)(5) Width x Depth x Height Weight Vertical Clearance Horizontal Clearance Left & Right Front Rear Acoustic Emissions at Full Load Power Nominal at 10 m (33 ft) 0.76 x 1.5 x 1.8 m (30 x 60 x 70 in) 405 kg (891 lb) 0.61 m (24 in) 0.76 m (30 in) 0.93 m (37 in) 0.90 m (35 in) 65 dBA Minimum Clearance Requirements(6) Sound Levels Certifications • Models available with optional equipment for CE Marking vs. (1) Some utilities may require additional equipment for grid interconnectivity (2) Nominal full power performance at ISO conditions: 59 ̊F, 14.696 psia, 60% RH (3) For surrogate landfill and digester gases. Please contact Capstone for additional details (4) Approximate dimensions and weights (5) Height dimensions are to the roof line. Exhaust outlet extends at least 7 in above the roof line (6) Clearance requirements may increase due to local code considerations Specifications are not warranted and are subject to change without notice. 21211 Nordhoff Street • Chatsworth • CA • 91311 • 866.422.7786 • 818.734.5300 • www.capstoneturbine.com ©2011 Capstone Turbine Corporation. P0911 CR30 Renewable Fuels Data Sheet CAP137 | Capstone P/N 331033FPDF Image | CR30 MicroTurbine Renewable Fuels
PDF Search Title:
CR30 MicroTurbine Renewable FuelsOriginal File Name Searched:
CR30_331033F_lowres.pdfDIY PDF Search: Google It | Yahoo | Bing
