Text from PDF Page: 033

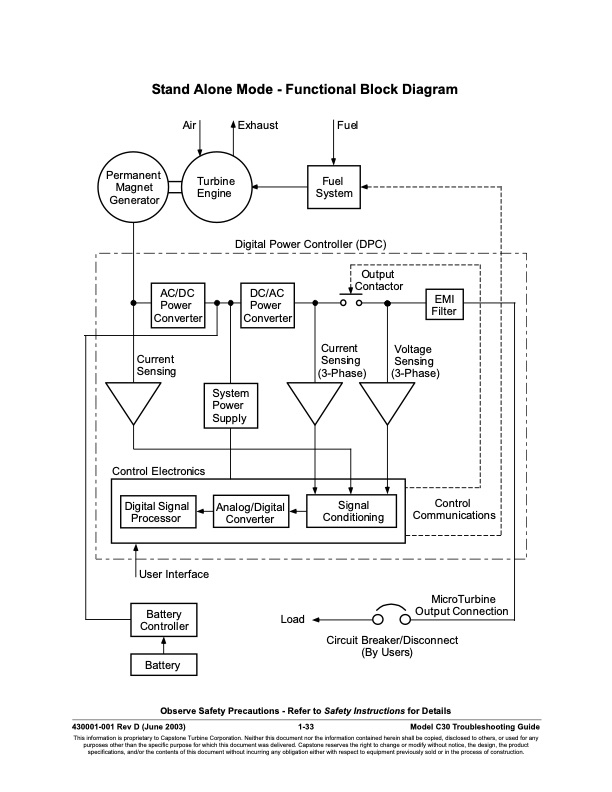

Stand Alone Mode - Functional Block Diagram Permanent Magnet Generator Turbine Engine AC/DC Power Converter DC/AC Power Converter Fuel System EMI Filter Voltage Sensing (3-Phase) Current Sensing System Power Supply Digital Signal Processor Analog/Digital Converter Signal Conditioning Battery Controller Air Exhaust Fuel Digital Power Controller (DPC) Output Contactor Current Sensing (3-Phase) Battery Control Electronics User Interface Control Communications MicroTurbine Output Connection Load Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev D (June 2003) 1-33 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Circuit Breaker/Disconnect (By Users)PDF Image | Capstone Table of Contents ALL Series Fault Codes
