PDF Publication Title:
Text from PDF Page: 020

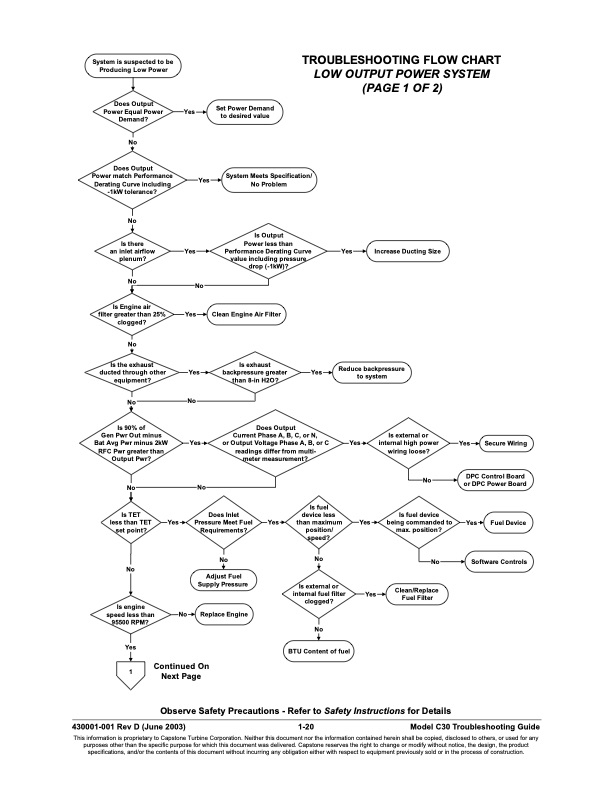

System is suspected to be Producing Low Power Does Output Power Equal Power Yes Demand? No Does Output Power match Performance Yes Derating Curve including -1kW tolerance? No Is there an inlet airflow Yes TROUBLESHOOTING FLOW CHART LOW OUTPUT POWER SYSTEM (PAGE 1 OF 2) Set Power Demand to desired value plenum? No No System Meets Specification/ No Problem Is Output Power less than Performance Derating Curve value including pressure drop (-1kW)? Clean Engine Air Filter Is exhaust backpressure greater Yes than 8-in H2O? Does Output Current Phase A, B, C, or N, or Output Voltage Phase A, B, or C readings differ from multi- meter measurement? Yes Increase Ducting Size Reduce backpressure to system Is Engine air filter greater than 25% Yes clogged? No Is the exhaust ducted through other equipment? No Is 90% of Gen Pwr Out minus Bat Avg Pwr minus 2kW RFC Pwr greater than Output Pwr? Yes No Yes No Does Inlet Pressure Meet Fuel Requirements? No Adjust Fuel Supply Pressure Yes Yes Yes Is external or internal high power Yes wiring loose? No Is fuel device being commanded to max. position? Secure Wiring No Is TET less than TET set point? No Is engine speed less than 95500 RPM? Yes Yes Is fuel device less than maximum position/ speed? No Is external or internal fuel filter clogged? No BTU Content of fuel DPC Control Board or DPC Power Board Yes Fuel Device Software Controls No Clean/Replace Fuel Filter No Replace Engine Yes 1 Continued On Next Page Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev D (June 2003) 1-20 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone Table of Contents ALL Series Fault Codes
PDF Search Title:
Capstone Table of Contents ALL Series Fault CodesOriginal File Name Searched:
C30FaultCodes.pdfDIY PDF Search: Google It | Yahoo | Bing
