Capstone MicroTurbine Model C30 User's Manual

PDF Publication Title:

Capstone MicroTurbine Model C30 User's Manual ( capstone-microturbine-model-c30-users-manual )

Previous Page View | Next Page View | Return to Search List

Text from PDF Page: 039

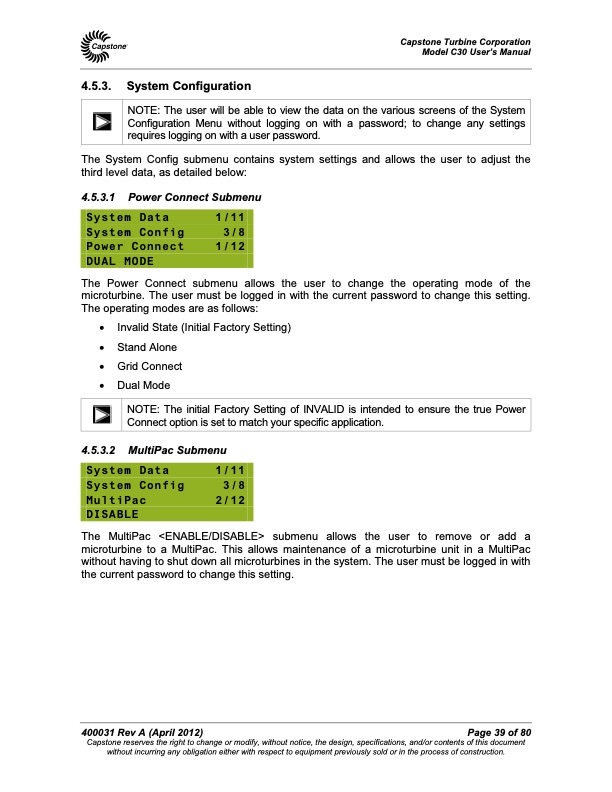

Capstone Turbine Corporation Model C30 User’s Manual 4.5.3. System Configuration NOTE: The user will be able to view the data on the various screens of the System Configuration Menu without logging on with a password; to change any settings requires logging on with a user password. The System Config submenu contains system settings and allows the user to adjust the third level data, as detailed below: 4.5.3.1 Power Connect Submenu The Power Connect submenu allows the user to change the operating mode of the microturbine. The user must be logged in with the current password to change this setting. The operating modes are as follows: • Invalid State (Initial Factory Setting) • Stand Alone • Grid Connect • Dual Mode NOTE: The initial Factory Setting of INVALID is intended to ensure the true Power Connect option is set to match your specific application. 4.5.3.2 MultiPac Submenu The MultiPac submenu allows the user to remove or add a microturbine to a MultiPac. This allows maintenance of a microturbine unit in a MultiPac without having to shut down all microturbines in the system. The user must be logged in with the current password to change this setting. System Data 1/11 System Config 3/8 Power Connect 1/12 DUAL MODE System Data 1/11 System Config 3/8 MultiPac 2/12 DISABLE 400031 Rev A (April 2012) Page 39 of 80 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.

PDF Image | Capstone MicroTurbine Model C30 User's Manual

PDF Search Title:

Capstone MicroTurbine Model C30 User's Manual

Original File Name Searched:

2012_C30_Users_Manual.pdf
