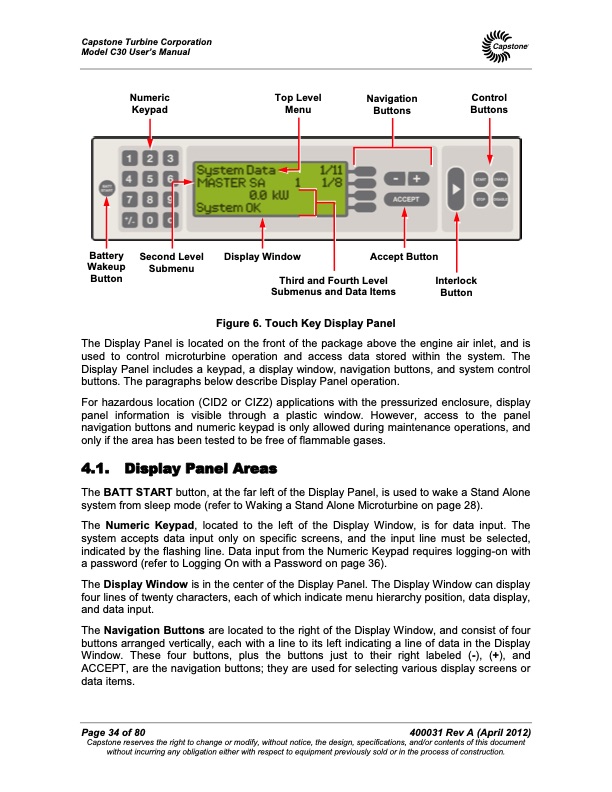

Capstone Turbine Corporation Model C30 User’s Manual Numeric Keypad Top Level Menu Navigation Buttons Control Buttons Battery Wakeup Button Second Level Submenu Display Window Third and Fourth Level Interlock Accept Button Submenus and Data Items Button Figure 6. Touch Key Display Panel The Display Panel is located on the front of the package above the engine air inlet, and is used to control microturbine operation and access data stored within the system. The Display Panel includes a keypad, a display window, navigation buttons, and system control buttons. The paragraphs below describe Display Panel operation. For hazardous location (CID2 or CIZ2) applications with the pressurized enclosure, display panel information is visible through a plastic window. However, access to the panel navigation buttons and numeric keypad is only allowed during maintenance operations, and only if the area has been tested to be free of flammable gases. 4.1. Display Panel Areas The BATT START button, at the far left of the Display Panel, is used to wake a Stand Alone system from sleep mode (refer to Waking a Stand Alone Microturbine on page 28). The Numeric Keypad, located to the left of the Display Window, is for data input. The system accepts data input only on specific screens, and the input line must be selected, indicated by the flashing line. Data input from the Numeric Keypad requires logging-on with a password (refer to Logging On with a Password on page 36). The Display Window is in the center of the Display Panel. The Display Window can display four lines of twenty characters, each of which indicate menu hierarchy position, data display, and data input. The Navigation Buttons are located to the right of the Display Window, and consist of four buttons arranged vertically, each with a line to its left indicating a line of data in the Display Window. These four buttons, plus the buttons just to their right labeled (-), (+), and ACCEPT, are the navigation buttons; they are used for selecting various display screens or data items. Page 34 of 80 400031 Rev A (April 2012) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C30 User's Manual
