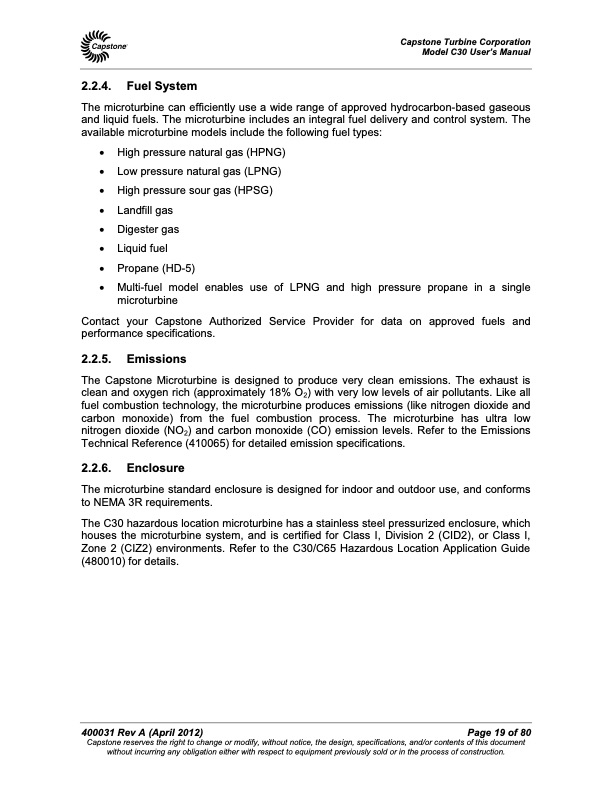

2.2.4. Fuel System The microturbine can efficiently use a wide range of approved hydrocarbon-based gaseous and liquid fuels. The microturbine includes an integral fuel delivery and control system. The available microturbine models include the following fuel types: • High pressure natural gas (HPNG) • Low pressure natural gas (LPNG) • High pressure sour gas (HPSG) • Landfill gas • Digester gas • Liquid fuel • Propane (HD-5) • Multi-fuel model enables use of LPNG and high pressure propane in a single microturbine Contact your Capstone Authorized Service Provider for data on approved fuels and performance specifications. 2.2.5. Emissions The Capstone Microturbine is designed to produce very clean emissions. The exhaust is clean and oxygen rich (approximately 18% O2) with very low levels of air pollutants. Like all fuel combustion technology, the microturbine produces emissions (like nitrogen dioxide and carbon monoxide) from the fuel combustion process. The microturbine has ultra low nitrogen dioxide (NO2) and carbon monoxide (CO) emission levels. Refer to the Emissions Technical Reference (410065) for detailed emission specifications. 2.2.6. Enclosure The microturbine standard enclosure is designed for indoor and outdoor use, and conforms to NEMA 3R requirements. The C30 hazardous location microturbine has a stainless steel pressurized enclosure, which houses the microturbine system, and is certified for Class I, Division 2 (CID2), or Class I, Zone 2 (CIZ2) environments. Refer to the C30/C65 Hazardous Location Application Guide (480010) for details. Capstone Turbine Corporation Model C30 User’s Manual 400031 Rev A (April 2012) Page 19 of 80 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C30 User's Manual
