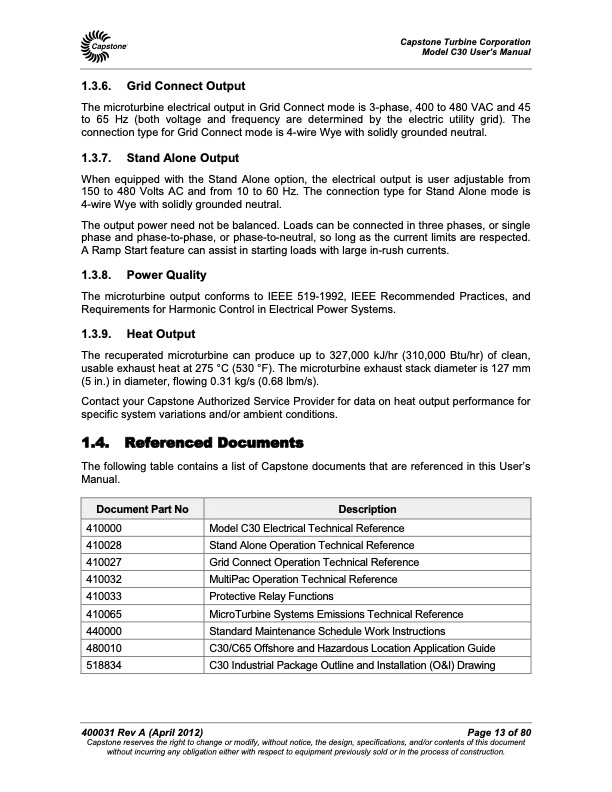

Text from PDF Page: 013
1.3.6. Grid Connect Output The microturbine electrical output in Grid Connect mode is 3-phase, 400 to 480 VAC and 45 to 65 Hz (both voltage and frequency are determined by the electric utility grid). The connection type for Grid Connect mode is 4-wire Wye with solidly grounded neutral. 1.3.7. Stand Alone Output When equipped with the Stand Alone option, the electrical output is user adjustable from 150 to 480 Volts AC and from 10 to 60 Hz. The connection type for Stand Alone mode is 4-wire Wye with solidly grounded neutral. The output power need not be balanced. Loads can be connected in three phases, or single phase and phase-to-phase, or phase-to-neutral, so long as the current limits are respected. A Ramp Start feature can assist in starting loads with large in-rush currents. 1.3.8. Power Quality The microturbine output conforms to IEEE 519-1992, IEEE Recommended Practices, and Requirements for Harmonic Control in Electrical Power Systems. 1.3.9. Heat Output The recuperated microturbine can produce up to 327,000 kJ/hr (310,000 Btu/hr) of clean, usable exhaust heat at 275 °C (530 °F). The microturbine exhaust stack diameter is 127 mm (5 in.) in diameter, flowing 0.31 kg/s (0.68 lbm/s). Contact your Capstone Authorized Service Provider for data on heat output performance for specific system variations and/or ambient conditions. 1.4. Referenced Documents The following table contains a list of Capstone documents that are referenced in this User’s Manual. Capstone Turbine Corporation Model C30 User’s Manual Document Part No Description 410000 410028 410027 410032 410033 410065 440000 480010 518834 400031 Rev A (April 2012) Model C30 Electrical Technical Reference Stand Alone Operation Technical Reference Grid Connect Operation Technical Reference MultiPac Operation Technical Reference Protective Relay Functions MicroTurbine Systems Emissions Technical Reference Standard Maintenance Schedule Work Instructions C30/C65 Offshore and Hazardous Location Application Guide C30 Industrial Package Outline and Installation (O&I) Drawing Page 13 of 80 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C30 User's Manual
