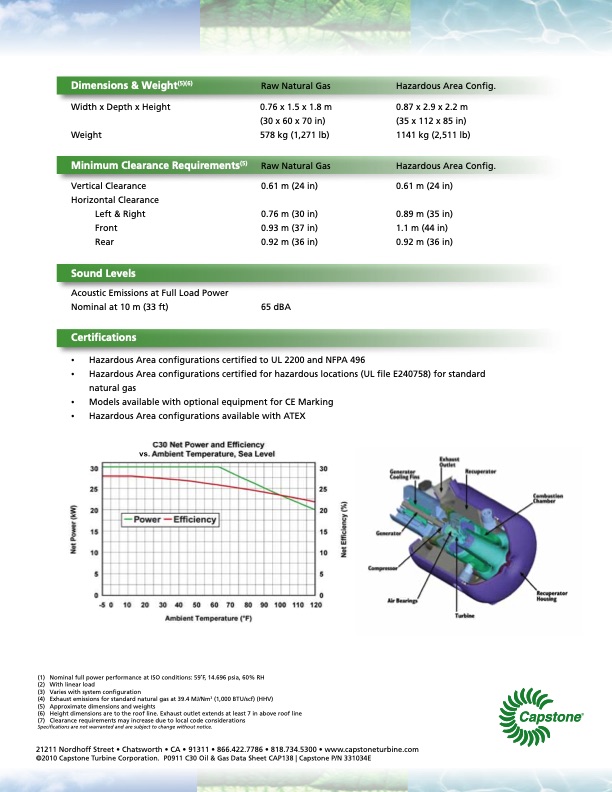

Dimensions & Weight(5)(6) Raw Natural Gas Hazardous Area Config. Width x Depth x Height Weight Vertical Clearance Horizontal Clearance Left & Right Front Rear Sound Levels Acoustic Emissions at Full Load Power Nominal at 10 m (33 ft) 0.76 x 1.5 x 1.8 m (30 x 60 x 70 in) 578 kg (1,271 lb) 0.61 m (24 in) 0.76 m (30 in) 0.93 m (37 in) 0.92 m (36 in) 65 dBA 0.87 x 2.9 x 2.2 m (35 x 112 x 85 in) 1141 kg (2,511 lb) 0.61 m (24 in) 0.89 m (35 in) 1.1 m (44 in) 0.92 m (36 in) Minimum Clearance Requirements(5) Raw Natural Gas Hazardous Area Config. Certifications • Hazardous Area configurations certified to UL 2200 and NFPA 496 • Hazardous Area configurations certified for hazardous locations (UL file E240758) for standard natural gas • Models available with optional equipment for CE Marking • Hazardous Area configurations available with ATEX vs. (1) Nominal full power performance at ISO conditions: 59 ̊F, 14.696 psia, 60% RH (2) With linear load (3) Varies with system configuration (4) Exhaust emissions for standard natural gas at 39.4 MJ/Nm3 (1,000 BTU/scf) (HHV) (5) Approximate dimensions and weights (6) Height dimensions are to the roof line. Exhaust outlet extends at least 7 in above roof line (7) Clearance requirements may increase due to local code considerations Specifications are not warranted and are subject to change without notice. 21211 Nordhoff Street • Chatsworth • CA • 91311 • 866.422.7786 • 818.734.5300 • www.capstoneturbine.com ©2010 Capstone Turbine Corporation. P0911 C30 Oil & Gas Data Sheet CAP138 | Capstone P/N 331034EPDF Image | C30 MicroTurbine Oil and Gas
