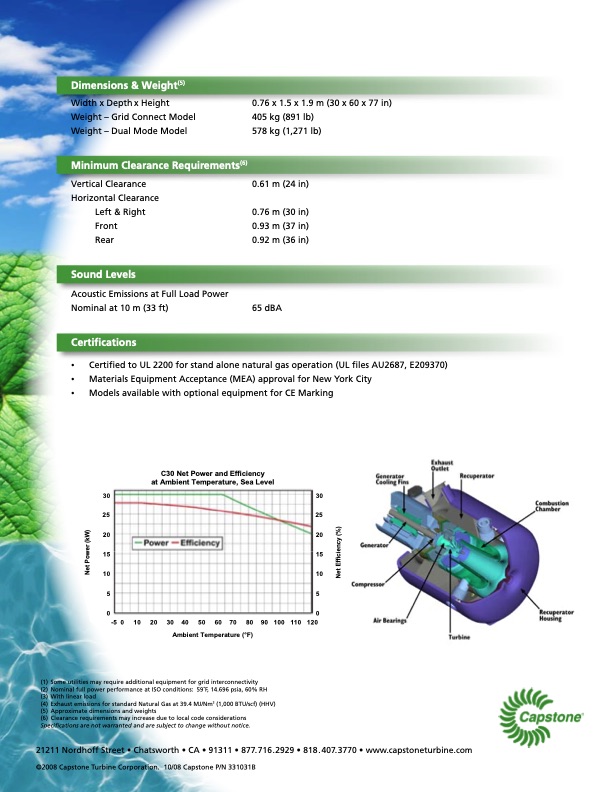

Text from PDF Page: 002
Dimensions & Weight(5) Width x Depth x Height 0.76 x 1.5 x 1.9 m (30 x 60 x 77 in) Weight – Grid Connect Model Weight – Dual Mode Model Horizontal Clearance Left & Right Front Rear Nominal at 10 m (33 ft) Certifications 405 kg (891 lb) 578 kg (1,271 lb) 0.76 m (30 in) 0.93 m (37 in) 0.92 m (36 in) 65 dBA Minimum Clearance Requirements(6) Vertical Clearance 0.61 m (24 in) Sound Levels Acoustic Emissions at Full Load Power • Certified to UL 2200 for stand alone natural gas operation (UL files AU2687, E209370) • Materials Equipment Acceptance (MEA) approval for New York City • Models available with optional equipment for CE Marking 30 30 25 25 20 20 15 15 10 10 55 00 -50 10 20 30 40 50 60 70 80 90100110120 Ambient Temperature (°F) (1) Some utilities may require additional equipment for grid interconnectivity (2) Nominal full power performance at ISO conditions: 59 ̊F, 14.696 psia, 60% RH (3) With linear load (4) Exhaust emissions for standard Natural Gas at 39.4 MJ/Nm3 (1,000 BTU/scf) (HHV) (5) Approximate dimensions and weights (6) Clearance requirements may increase due to local code considerations Specifications are not warranted and are subject to change without notice. 21211 Nordhoff Street • Chatsworth • CA • 91311 • 877.716.2929 • 818.407.3770 • www.capstoneturbine.com ©2008 Capstone Turbine Corporation. 10/08 Capstone P/N 331031B C30 Net Power and Efficiency at Ambient Temperature, Sea Level Net Power (kW) Net Efficiency (%)PDF Image | C30 430000-100 B
