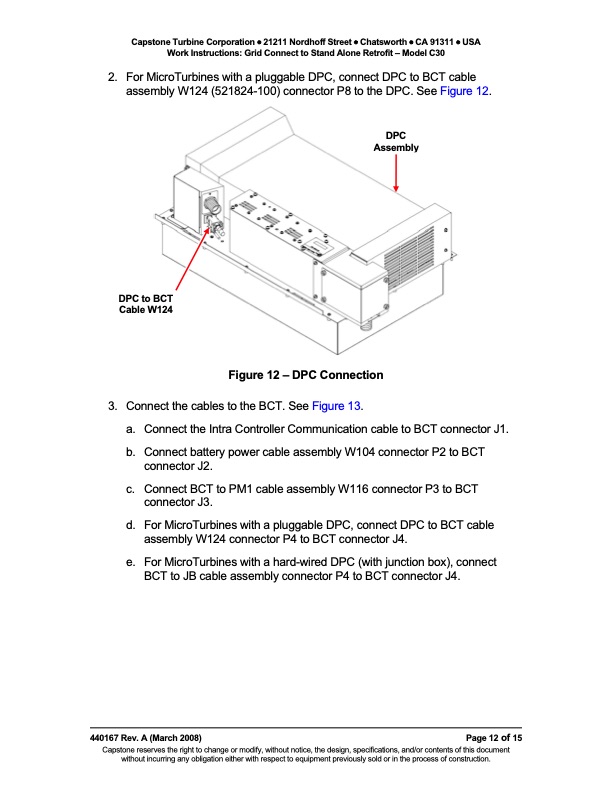

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Work Instructions: Grid Connect to Stand Alone Retrofit – Model C30 2. ForMicroTurbineswithapluggableDPC,connectDPCtoBCTcable assembly W124 (521824-100) connector P8 to the DPC. See Figure 12. DPC to BCT Cable W124 Figure 12 – DPC Connection 3. ConnectthecablestotheBCT.SeeFigure13. a. ConnecttheIntraControllerCommunicationcabletoBCTconnectorJ1. b. ConnectbatterypowercableassemblyW104connectorP2toBCT connector J2. c. Connect BCT to PM1 cable assembly W116 connector P3 to BCT connector J3. d. ForMicroTurbineswithapluggableDPC,connectDPCtoBCTcable assembly W124 connector P4 to BCT connector J4. e. ForMicroTurbineswithahard-wiredDPC(withjunctionbox),connect BCT to JB cable assembly connector P4 to BCT connector J4. DPC Assembly 440167 Rev. A (March 2008) Page 12 of 15 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | 440167A_C30-GC-SA-Retrofit
