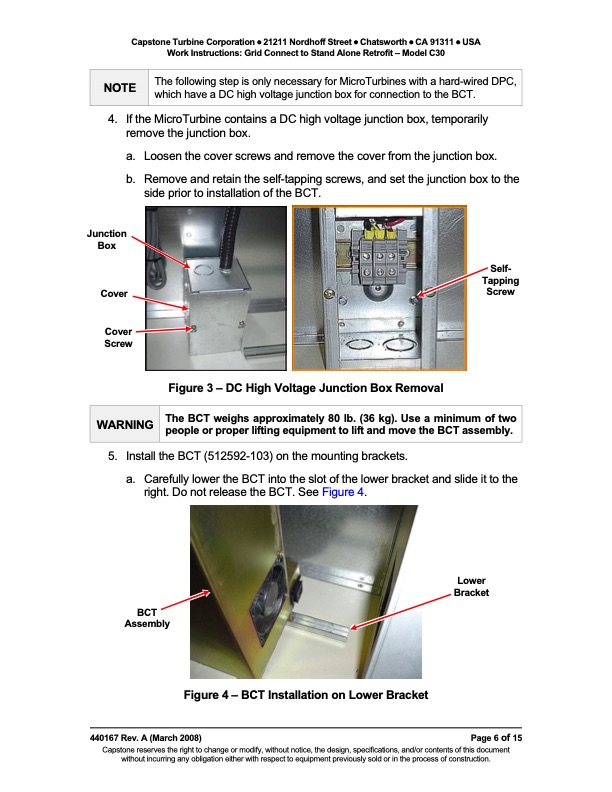

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Work Instructions: Grid Connect to Stand Alone Retrofit – Model C30 The following step is only necessary for MicroTurbines with a hard-wired DPC, which have a DC high voltage junction box for connection to the BCT. 4. IftheMicroTurbinecontainsaDChighvoltagejunctionbox,temporarily remove the junction box. a. Loosenthecoverscrewsandremovethecoverfromthejunctionbox. b. Removeandretaintheself-tappingscrews,andsetthejunctionboxtothe side prior to installation of the BCT. NOTE Junction Box Cover Cover Screw WARNING 5. InstalltheBCT(512592-103)onthemountingbrackets. a. CarefullylowertheBCTintotheslotofthelowerbracketandslideittothe Self- Tapping Screw Figure 3 – DC High Voltage Junction Box Removal The BCT weighs approximately 80 lb. (36 kg). Use a minimum of two people or proper lifting equipment to lift and move the BCT assembly. right. Do not release the BCT. See Figure 4. BCT Assembly Figure 4 – BCT Installation on Lower Bracket 440167 Rev. A (March 2008) Lower Bracket Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Page 6 of 15PDF Image | 440167A_C30-GC-SA-Retrofit
