Text from PDF Page: 007

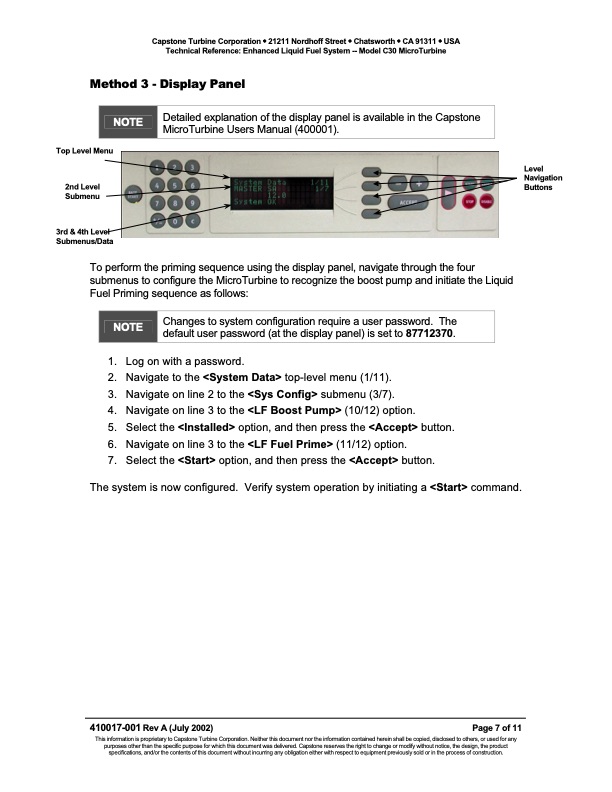

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Enhanced Liquid Fuel System -- Model C30 MicroTurbine Method 3 - Display Panel Detailed explanation of the display panel is available in the Capstone MicroTurbine Users Manual (400001). NOTE 3rd & 4th Level Submenus/Data Top Level Menu 2nd Level Submenu Level Navigation Buttons To perform the priming sequence using the display panel, navigate through the four submenus to configure the MicroTurbine to recognize the boost pump and initiate the Liquid Fuel Priming sequence as follows: Changes to system configuration require a user password. The default user password (at the display panel) is set to 87712370. 1. Log on with a password. 2. Navigate to the top-level menu (1/11). 3. Navigate on line 2 to the submenu (3/7). 4. Navigate on line 3 to the (10/12) option. 5. Select the option, and then press the button. 6. Navigate on line 3 to the (11/12) option. 7. Select the option, and then press the button. The system is now configured. Verify system operation by initiating a command. NOTE 410017-001 Rev A (July 2002) Page 7 of 11 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
