Text from PDF Page: 021

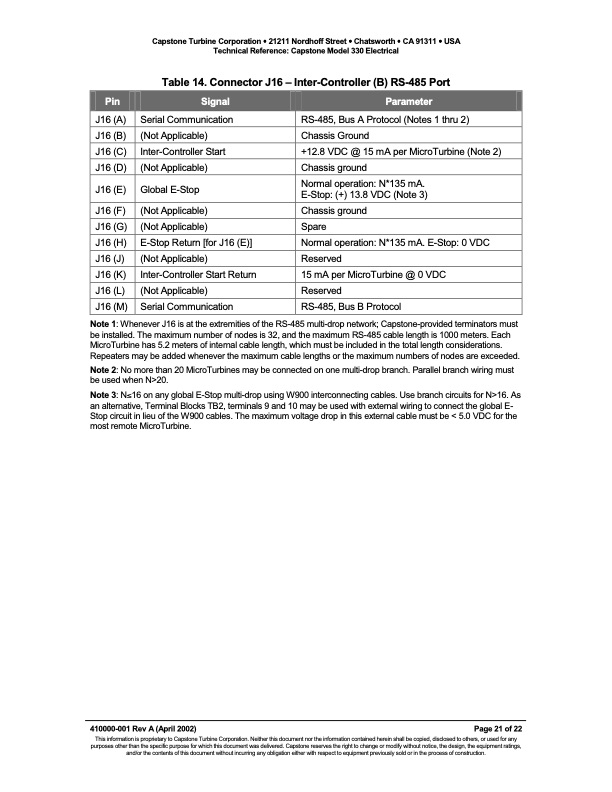

J16 (A) J16 (B) J16 (C) J16 (D) J16 (E) J16 (F) J16 (G) J16 (H) J16 (J) J16 (K) J16 (L) J16 (M) Serial Communication (Not Applicable) Inter-Controller Start (Not Applicable) Global E-Stop (Not Applicable) (Not Applicable) E-Stop Return [for J16 (E)] (Not Applicable) Inter-Controller Start Return (Not Applicable) Serial Communication RS-485, Bus A Protocol (Notes 1 thru 2) Chassis Ground +12.8 VDC @ 15 mA per MicroTurbine (Note 2) Chassis ground Normal operation: N*135 mA. E-Stop: (+) 13.8 VDC (Note 3) Chassis ground Spare Normal operation: N*135 mA. E-Stop: 0 VDC Reserved 15 mA per MicroTurbine @ 0 VDC Reserved RS-485, Bus B Protocol Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone Model 330 Electrical Table 14. Connector J16 – Inter-Controller (B) RS-485 Port Pin Signal Parameter Note 1: Whenever J16 is at the extremities of the RS-485 multi-drop network; Capstone-provided terminators must be installed. The maximum number of nodes is 32, and the maximum RS-485 cable length is 1000 meters. Each MicroTurbine has 5.2 meters of internal cable length, which must be included in the total length considerations. Repeaters may be added whenever the maximum cable lengths or the maximum numbers of nodes are exceeded. Note 2: No more than 20 MicroTurbines may be connected on one multi-drop branch. Parallel branch wiring must be used when N>20. Note 3: N≤16 on any global E-Stop multi-drop using W900 interconnecting cables. Use branch circuits for N>16. As an alternative, Terminal Blocks TB2, terminals 9 and 10 may be used with external wiring to connect the global E- Stop circuit in lieu of the W900 cables. The maximum voltage drop in this external cable must be < 5.0 VDC for the most remote MicroTurbine. 410000-001 Rev A (April 2002) Page 21 of 22 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | 410000 C30 Elec
