Text from PDF Page: 008

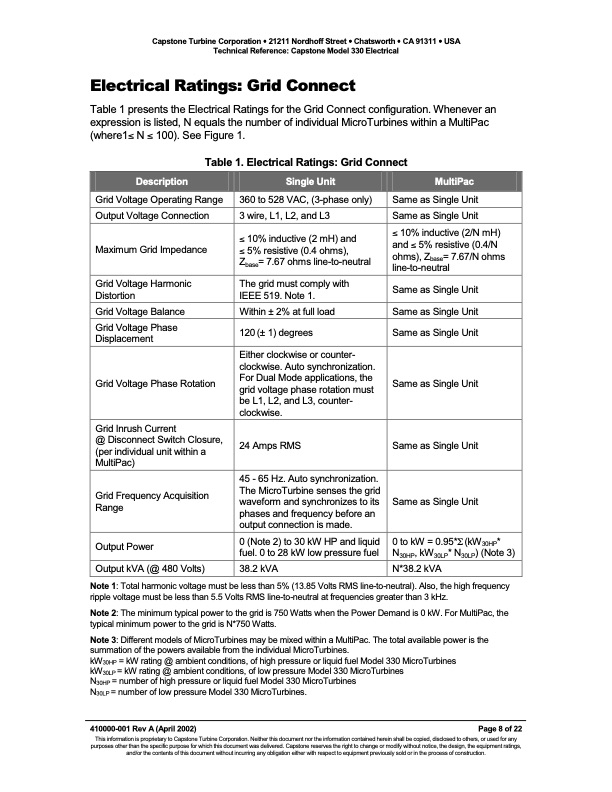

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone Model 330 Electrical Electrical Ratings: Grid Connect Table 1 presents the Electrical Ratings for the Grid Connect configuration. Whenever an expression is listed, N equals the number of individual MicroTurbines within a MultiPac (where1≤ N ≤ 100). See Figure 1. Table 1. Electrical Ratings: Grid Connect Description Single Unit MultiPac Grid Voltage Operating Range Output Voltage Connection Grid Voltage Harmonic Distortion Grid Voltage Balance Grid Voltage Phase Displacement 360 to 528 VAC, (3-phase only) 3 wire, L1, L2, and L3 The grid must comply with IEEE 519. Note 1. Within ± 2% at full load 120 (± 1) degrees Same as Single Unit Same as Single Unit Same as Single Unit Same as Single Unit Same as Single Unit Maximum Grid Impedance ≤ 10% inductive (2 mH) and ≤ 5% resistive (0.4 ohms), Zbase= 7.67 ohms line-to-neutral ≤ 10% inductive (2/N mH) and ≤ 5% resistive (0.4/N ohms), Zbase= 7.67/N ohms line-to-neutral Grid Voltage Phase Rotation Either clockwise or counter- clockwise. Auto synchronization. For Dual Mode applications, the grid voltage phase rotation must be L1, L2, and L3, counter- clockwise. Same as Single Unit Grid Inrush Current @ Disconnect Switch Closure, (per individual unit within a MultiPac) 24 Amps RMS Same as Single Unit Grid Frequency Acquisition Range 45 - 65 Hz. Auto synchronization. The MicroTurbine senses the grid waveform and synchronizes to its phases and frequency before an output connection is made. Same as Single Unit Output Power Output kVA (@ 480 Volts) 0 (Note 2) to 30 kW HP and liquid fuel. 0 to 28 kW low pressure fuel 38.2 kVA 0 to kW = 0.95*Σ (kW30HP* N30HP, kW30LP* N30LP) (Note 3) N*38.2 kVA Note 1: Total harmonic voltage must be less than 5% (13.85 Volts RMS line-to-neutral). Also, the high frequency ripple voltage must be less than 5.5 Volts RMS line-to-neutral at frequencies greater than 3 kHz. Note 2: The minimum typical power to the grid is 750 Watts when the Power Demand is 0 kW. For MultiPac, the typical minimum power to the grid is N*750 Watts. Note 3: Different models of MicroTurbines may be mixed within a MultiPac. The total available power is the summation of the powers available from the individual MicroTurbines. kW30HP = kW rating @ ambient conditions, of high pressure or liquid fuel Model 330 MicroTurbines kW30LP = kW rating @ ambient conditions, of low pressure Model 330 MicroTurbines N30HP = number of high pressure or liquid fuel Model 330 MicroTurbines N30LP = number of low pressure Model 330 MicroTurbines. 410000-001 Rev A (April 2002) Page 8 of 22 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | 410000 C30 Elec
