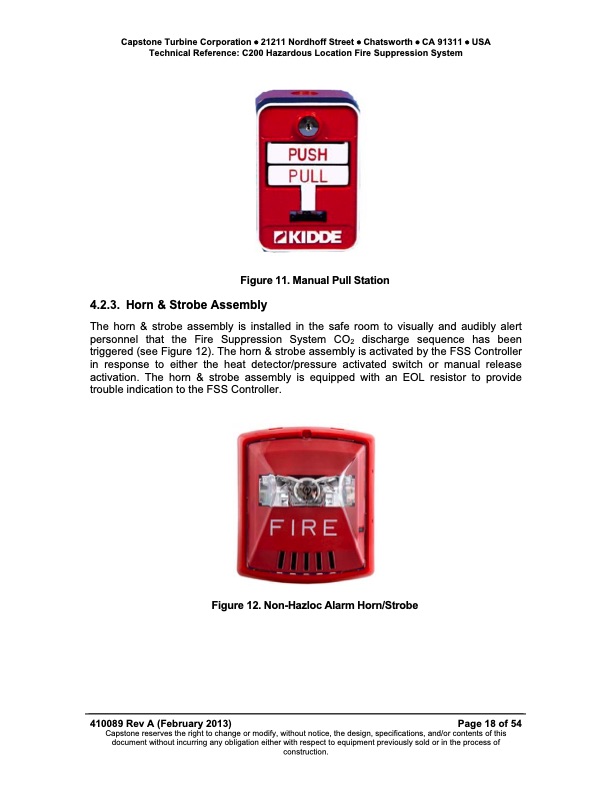

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: C200 Hazardous Location Fire Suppression System Figure 11. Manual Pull Station 4.2.3. Horn & Strobe Assembly The horn & strobe assembly is installed in the safe room to visually and audibly alert personnel that the Fire Suppression System CO2 discharge sequence has been triggered (see Figure 12). The horn & strobe assembly is activated by the FSS Controller in response to either the heat detector/pressure activated switch or manual release activation. The horn & strobe assembly is equipped with an EOL resistor to provide trouble indication to the FSS Controller. Figure 12. Non-Hazloc Alarm Horn/Strobe 410089 Rev A (February 2013) Page 18 of 54 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference C200 Hazloc Fire Suppression System
