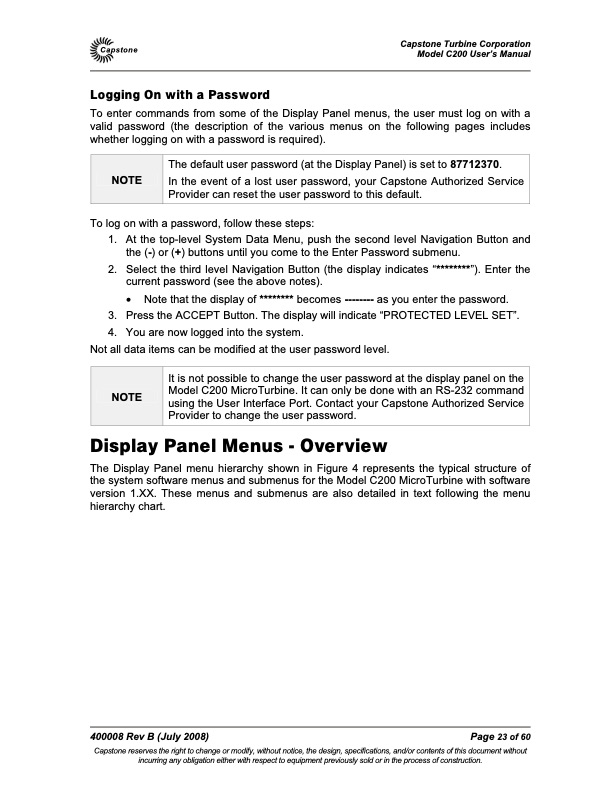

Capstone Logging On with a Password Capstone Turbine Corporation Model C200 User’s Manual To enter commands from some of the Display Panel menus, the user must log on with a valid password (the description of the various menus on the following pages includes whether logging on with a password is required). To log on with a password, follow these steps: 1. At the top-level System Data Menu, push the second level Navigation Button and the (-) or (+) buttons until you come to the Enter Password submenu. 2. Select the third level Navigation Button (the display indicates “********”). Enter the current password (see the above notes). • Note that the display of ******** becomes -------- as you enter the password. 3. Press the ACCEPT Button. The display will indicate “PROTECTED LEVEL SET”. 4. You are now logged into the system. Not all data items can be modified at the user password level. Display Panel Menus - Overview The Display Panel menu hierarchy shown in Figure 4 represents the typical structure of the system software menus and submenus for the Model C200 MicroTurbine with software version 1.XX. These menus and submenus are also detailed in text following the menu hierarchy chart. NOTE The default user password (at the Display Panel) is set to 87712370. In the event of a lost user password, your Capstone Authorized Service Provider can reset the user password to this default. NOTE It is not possible to change the user password at the display panel on the Model C200 MicroTurbine. It can only be done with an RS-232 command using the User Interface Port. Contact your Capstone Authorized Service Provider to change the user password. 400008 Rev B (July 2008) Page 23 of 60 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C200 User's Manual
